2N - 9151301K

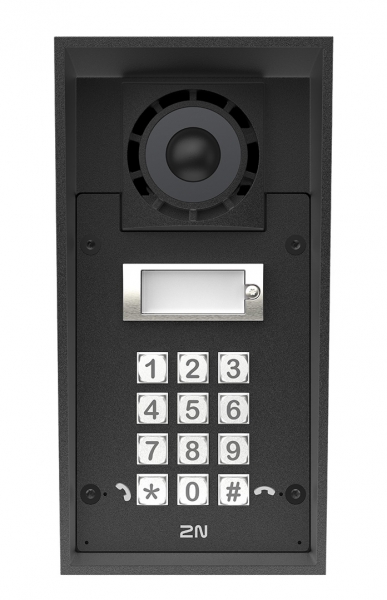

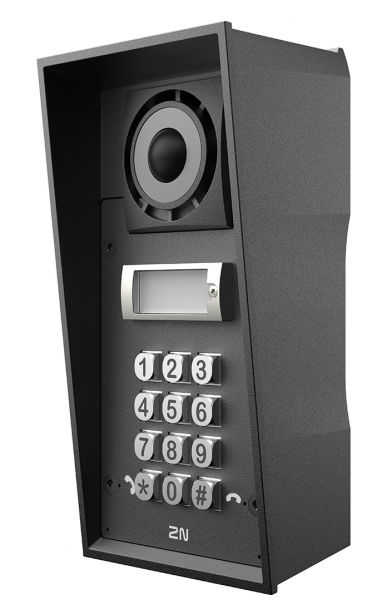

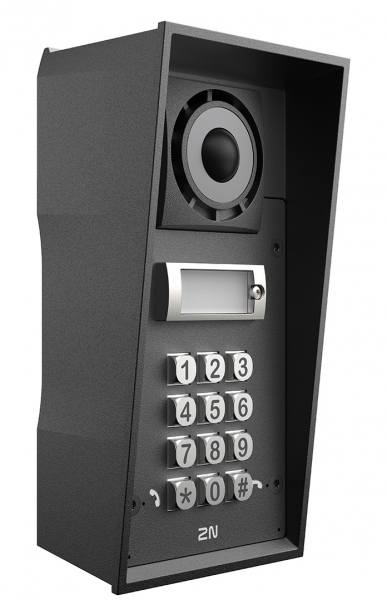

2N IP Force 2.0, 1 Button, Keypad, Audio Only
List Price
£1,691.78
$0.00
€0.00
incl. VAT
Product Description
The 2N IP Force 2.0, 1 button keypad, audio-only is a purpose-built intercom solution combining industrial-grade durability with flexible access control and reliable IP communication.
Encased in the rugged, weather- and vandal-resistant housing characteristic of the IP Force 2.0 series, this model is suited to outdoor and exposed installations where physical security and environmental resilience are critical. Its integrated keypad enables code-based access ideal when card readers or mobile credentials are not used.
As part of the IP Force 2.0 family, the 9151301K supports standard IP protocols and can be configured and managed via web interface or enterprise platforms, allowing seamless integration into existing access control or building management systems for efficient deployment across multiple sites.
Manual
- Click to download: 2n_datasheet_ip_force_2_0_en_lq.pdf
- Numeric keypad for secure, code-based access control
- Adaptive volume control and noise-cancellation capabilities to maintain clarity even in noisy or industrial environments
- Full-duplex SIP audio with dual integrated microphones and a 10 W / 4 Ω speaker
- Rugged, vandal- and weather-resistant housing built to IP69 / IK10 standards
- Full IP-based integration: supports SIP (UDP/TCP/TLS), SRTP, ONVIF among other protocols
| Description | 9151301K |
|---|---|
| Power supply type | 12 V / 4 A DC or PoE+ |
| PoE+ | IEEE 802.3at |
| Max power consumption | 30W |
| LAN | 10/100/1000BASE-TX with Auto-MDIX, RJ-45 |
| Recommended cabling | CAT6 with MPTL |
| Active switch output | 12 V / 0.6 A DC |
| Supported frequencies | 125 kHz & 13.56 MHz (multifrequency) |
| Microphone | 2 integrated |
| Amplifier | 10 W / 4 Ω |
| Speaker | 10 W / 4 Ω |
| Surface mounted | 109 (W) x 217 (H) x 83 (D) mm |
| Flush mounted | 135 (W) x 244 (H) x 12 (D) mm |
| Weight (Net) | 2.00kg |
| Weight (Gross) | 0.00kg |
