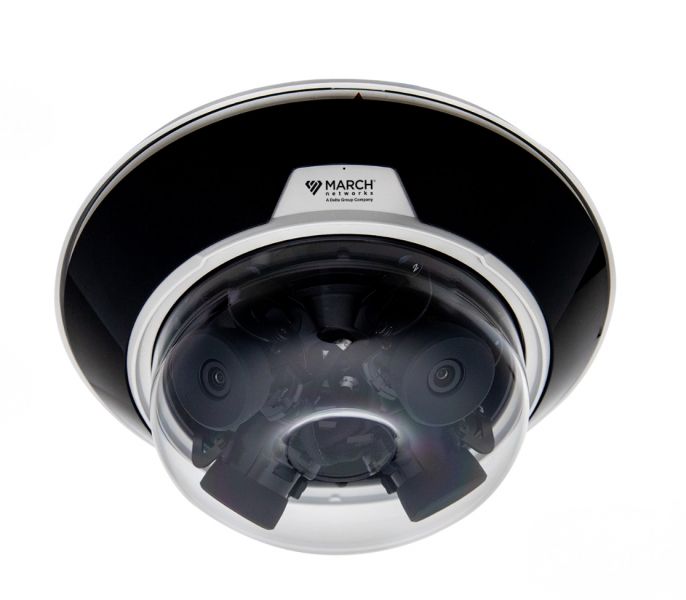

The March Networks EL20 Adjustable Multi-Sensor Camera is a cutting-edge surveillance solution designed to cover expansive areas with a single device. Featuring four independently adjustable 5MP camera heads, this advanced multi-sensor delivers a total of 20MP resolution, providing unmatched situational awareness and reducing the need for multiple camera installations.

Its robust metal housing is IP66 weatherproof and IK10 vandal-resistant, making it suitable for both outdoor and indoor use. With integrated IR LEDs offering illumination up to 30 metres, the EL20 delivers reliable nighttime performance. Additional capabilities include full-duplex audio, edge storage (up to 1TB), and support for AI-powered and smart motion analytics.

Optimised for large-scale deployments in public spaces, parking lots, warehouses, and critical infrastructure, the EL20 offers a comprehensive, efficient, and intelligent monitoring solution that integrates seamlessly with March Networks Command Enterprise Software.

Specification Sheet

Click to download: MN_EL20 Adjustable Multi-Sensor_DS_EN_06-2025.pdf

4 × 5MP independently adjustable camera heads for full 360° coverage
Integrated IR illumination up to 30m per lens
Rugged IP66-rated, IK10 vandal-resistant metal housing
Full-duplex audio with built-in mic and external I/O
Remote motorised zoom, focus, and image adjustment

Description	42454-101
Image Sensor	1/2.7
Effective Pixels	2688 × 1920 per lens (5MP × 4 sensors)
Lens Type
Field of View
HDR
IR Illumination	Up to 30 m (98.4 ft), 850 nm wavelength
Audio	Built-in microphone, external mic input and line output
Video Compression	H.265, H.264, MJPEG
Resolution Support	Up to 2688 × 1920
Frame Rate	15 fps @ full 20MP (4 × 2688 × 1920), 30 fps @ 4 × 2560 × 1440
Streaming	Up to 3 streams per sensor, individually configurable
Smart Features	Smart motion detection, camera tamper, audio detection
Local Storage	microSD/SDHC/SDXC up to 1TB
Power Input
Power Consumption	Max 25 W
Housing	Metal construction with system power/status LED
Dimensions	Ø267 × 114 mm
Operating Temperature	-40 °C to +65 C (IR off), -40 C to +60 C (IR on)
Ingress/Impact Protection	IP66, IK10
Compliance	CE, cULus, RCM, WEEE, UKCA, RoHS
Weight (Net)	2.70kg
Weight (Gross)	3.00kg
