March Networks - 41512-101

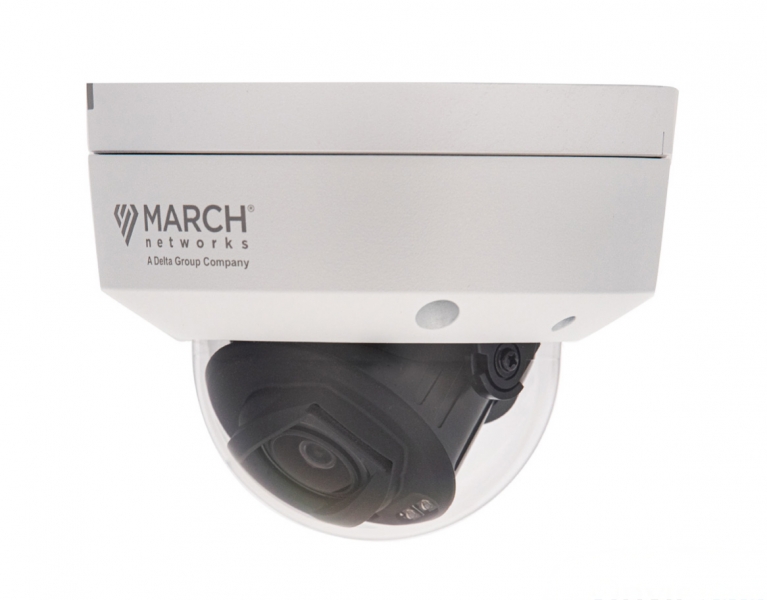

EL5 IR Dome Camera
Product Description
The March Networks EL5 IR Dome Camera is a high-performance 5MP IP dome camera built for reliable operation in tough environments. Available in both fixed and motorised lens variants, this dome offers intelligent surveillance with advanced onboard video analytics and robust housing protection.
Designed for flexible installation, the EL5 Dome features a vandal-resistant IK10-rated polycarbonate bubble and IP66 weatherproof housing, making it suitable for indoor and outdoor deployments. Built-in IR illumination with smart intensity adjustment ensures crisp, clear images even in complete darkness (up to 30m).
Integrated video analytics, including intrusion detection, loitering, tripwire, object removal, and more, help deliver real-time alerts for proactive security. The camera supports up to 3 individually configurable video streams and can record to local microSD cards or network storage for redundancy.
Perfect for use in commercial sites, transportation hubs, schools, healthcare environments, and government facilities.
Specification Sheet
- Click to download: MN_EL5 Dome_DS_EN_10-2024.pdf
- 5MP resolution with HDR (120 dB) and smart IR up to 30m
- Fixed or motorised P-Iris lens options
- Built-in analytics: tripwire, loitering, intrusion, object removal
- IK10 vandal-resistant and IP66 weatherproof housing
- MicroSD/NAS edge recording with full-duplex audio support
| Description | 41512-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Resolution | 5MP (2880 × 1620) |
| Lens Options | |
| Field of View | |
| IR Illumination Distance | 30 m (98 ft) |
| HDR | 120 dB |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Up to 30fps 5MP |
| Audio | Full Duplex, G.711 PCM, 3.5mm stereo I/O, embedded mic (motorised version) |
| Smart Video Analytics | Tripwire, intrusion, loitering, object removal, abandoned object |
| Storage | microSD/SDHC/SDXC (up to 1TB) |
| Streaming | Up to 3 individually configurable streams |
| Protocols | ONVIF S/G/T, TCP/IP, HTTPS, RTP, RTSP, IPv4/6 |
| Power Input | 12 VDC or PoE 802.3af (Class 0) |
| Power Consumption | Max 7.8 W (C4801A), 6.4 W (C4901A) |
| Operating Temperature | -30C to +60C |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Housing | Metal base, polycarbonate dome |
| Dimensions | Ø133 × 103 mm (C4801A), Ø117 × 89 mm (C4901A) |
| Weight (Net) | 0.56kg |
| Weight (Gross) | 0.76kg |
