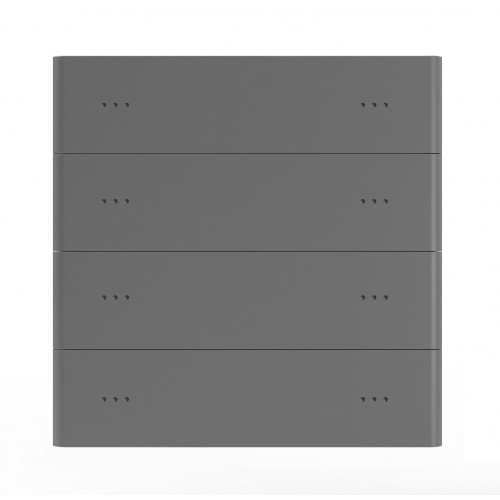

Akubela - KXKS-B1B8-EU
KNX - Smart Scene 8-Button Switch
Login for Pricing
Product Description
The Akubela KXKS-B1B8-EU 8-Button KNX Scene Panel is a premium wall-mounted smart building control interface, designed to give users simple, one-touch access to key KNX automation functions. Ideal for intelligent home automation, hospitality environments and commercial building controls. This compact KNX keypad enables quick operation of lighting, dimming, blind control, colour adjustment and configured scenes from a clean, intuitive 8-button layout.
Built for professional KNX installations, the KXKS-B1B8-EU works with compatible actuators to control multiple connected loads and automation functions across a KNX system. Its support for scene calling and scene storage makes it particularly effective in spaces where repeatable lighting, shading and comfort settings are required, helping installers deliver a more refined user experience while keeping everyday control simple.
For professional KNX projects, the KXKS-B1B8-EU gives users simple control of several smart building functions from one wall panel. It can be used to operate lighting, dimming, colour settings and blinds when connected to compatible KNX devices. The panel can also save and recall pre set scenes, making it easy to create repeatable settings such as “Meeting”, “Relax”, “Welcome” or “All Off”. This helps installers provide a smoother user experience while keeping day-to-day control clear and easy.
Designed for standard 60mm installation boxes, the KXKS-B1B8-EU features a compact 86×86mm front profile and an IP20-rated enclosure for indoor smart building applications. With KNX and CE certification, low bus current consumption and dedicated auxiliary power input, this 8-button KNX scene controller provides a dependable, easy-to-specify solution for modern smart homes, apartments, hotels and light commercial environments.
Specification Sheet
- Click to download: 2-4-6-8-button-knx-scene-panel.pdf
- Compatible with actuators to achieve functions such as switching, dimming, color adjustment, and blind control.
- Support scene calling and storage function.
- Delayed transmission of values (such as switch value, dimming value).
- Support multiple operations with a single button.
| Description | KXKS-B1B8-EU |
|---|---|
| Working Voltage | 21-30V DC |
| Auxiliary Voltage | 21V-30V DC |
| Working Temperature | -5 - 45 |
| Protection Level | IP20 |
| Installation Method | Standard 60mm installation box |
| Dimensions (W × H × D) | 86 × 86 × 38.2mm |
| Weight (Net) | 0.15kg |
| Weight (Gross) | 0.00kg |
