Farpointe Data - CSR-6.4L

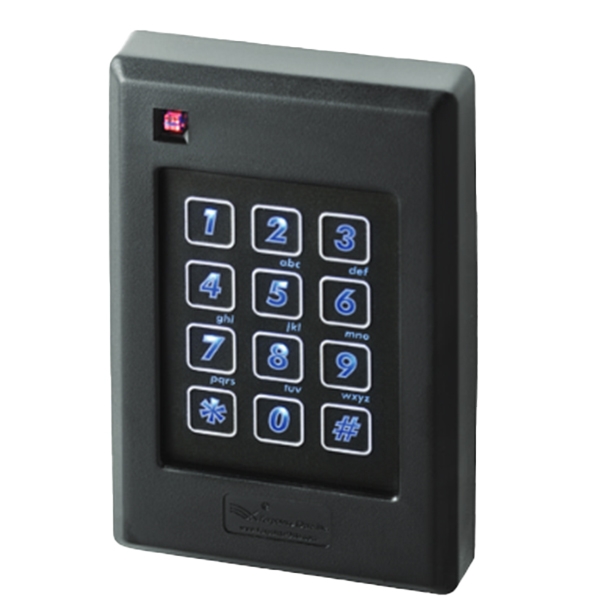

CSR-6.4L Mobile-ready single-gang wall switch box mount contactless smartcard reader and keypad
Product Description
The Farpointe Data CSR-6.4L CONEKT mobile-ready contactless smartcard reader and keypad delivers a cutting-edge access control solution, seamlessly integrating traditional contactless smartcard technology with the convenience of smartphone mobile credentials via Bluetooth Low Energy (BLE). Operating on both 13.56 MHz and 2.4 GHz frequencies, this single-gang wall box mount reader provides secure and versatile access for doors, parking facilities, and turnstiles. Engineered with modern security in mind, it supports MIFARE DESFire EV2 & EV3, features integrated high-security contactless smartcard support, and incorporates unique security enhancements like MAXSecure and ValidID fraudulent data detection.
This reader enhances user convenience with a read range of up to 2 inches for physical credentials and an impressive up to 15 feet for mobile credentials. It supports both Conekt and Switch Tech mobile credentials and offers flexible output interfaces, including Wiegand, ABA Track II Magnetic Stripe, and OSDP (available as a separate model). Backed by Farpointe's lifetime warranty, the CSR-6.4L is an ideal choice for a wide range of access control applications requiring robust security and mobile-ready functionality.
- Read range: Up to 2 inches (physical credentials), up to 15 feet (mobile credentials)
- Supports Conekt and Switch™ Tech mobile credentials
- Offers flexible output interfaces: Wiegand, ABA Track II Magnetic Stripe, OSDP (separate model)
- Features MAXSecure™ and ValidID™ security enhancements
- ETL Listed, conforms to UL 294 and ULC 60839-11-1 (Wiegand models)
- Backed by Farpointe's lifetime warranty
- Designed for single-gang wall box mounting
Specification Sheet
- Click to download: CSR62L-64L_Conekt_TDS - copy.pdf
- Bluetooth Low Energy
- Optimized for MIFARE DESFire EV2 & EV3
- MAXSecure
- ValidID
- ETL Listed - Independently Tested and Certified (Wiegand models)
- Warranty
- Wiegand, ABA Track II Magnetic Stripe or OSDP*
- Mullion Mount (CSR-6.2L)
- U.S. Single-Gang Wall-Box Mount (CSR-6.4L)
| Description | CSR-6.4L |
|---|---|
| Technology | Contactless smartcard and Bluetooth Low Energy (BLE) |
| Frequency | 13.56 MHz (contactless smartcard) and 2.4 GHz (BLE) |
| Mounting | CSR-6.2L: Mullions, including metal door and window frames, as well as flat surfaces CSR-6.4L: Single-gang wall box, as well as flat surfaces |
| Dimensions | CSR-6.4L: 3" W × 4.6" H × 0.75" D (76 mm × 117 mm × 19 mm) |
| OEM Label Area | 0.9 |
| Certifications | FCC, ICC, CE, UL Standard 294, ULC 60839-11-1 |
| IP Code | IP67 |
| Voltage | +8 to 14 VDC |
| Current Draw | 60 mA typical, 250 mA peak @ 12 VDC |
| Read Range | Physical Credentials: Up to 2 inches (51 mm) Mobile Credentials: Up to 15 feet (4.6 m) |
| Cabling | 24 AWG minimum, multiconductor stranded with an overall foil shield |
| Interface | Wiegand (26-bit and custom formats), ABA Track II magnetic stripe (clock and data) or OSDP |
| Operating Humidity | 0% to 90% relative humidity |
| Color Options | A black snap-on cover included standard |
| Audio Tone | Beeper included standard |
| Indoor & Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
| LED | Four-state standard (red, green, amber, and off) |
| Keypad Output | Either Wiegand or OSDP |
| Weight (Net) | 0.20kg |
| Weight (Gross) | 0.40kg |
