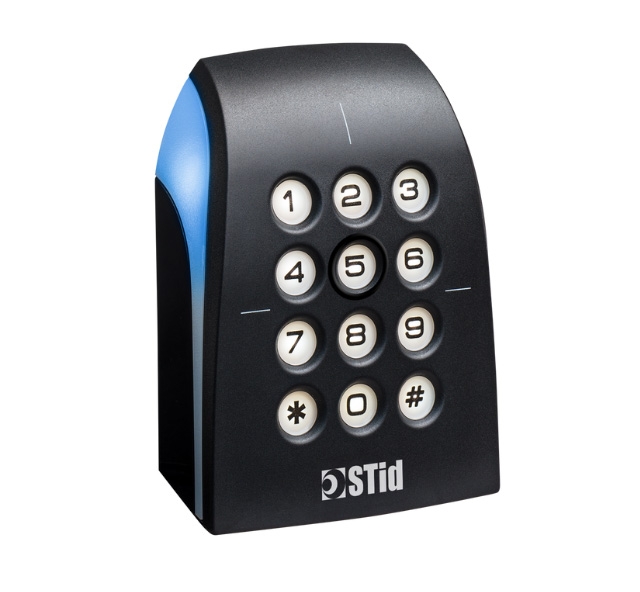

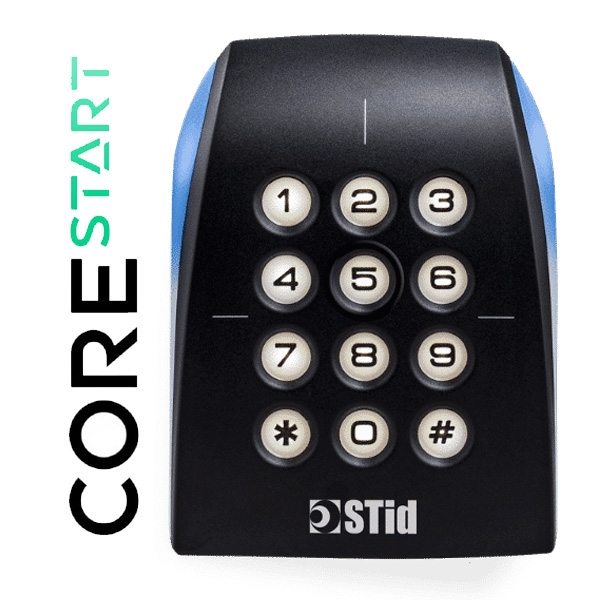

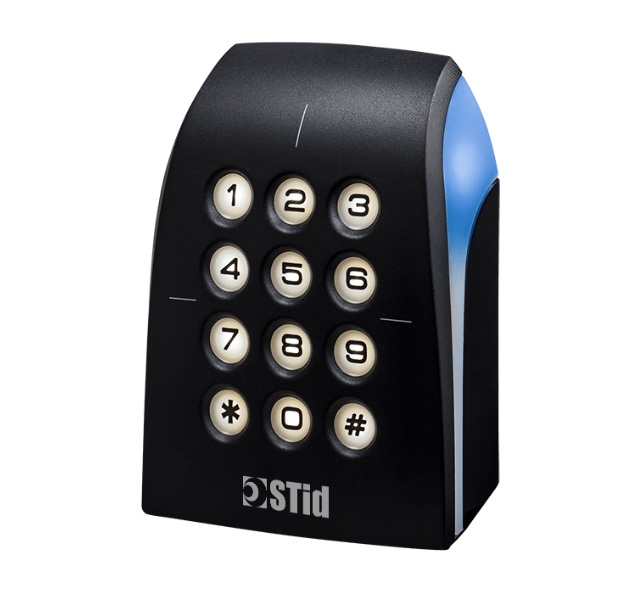

Keypad CORE Start Reader, Pre-configured Wiegand 26 bits
Product Description
The Architect Keypad CORE Start Reader (Wiegand 26-bit) is engineered for rapid, risk-free deployment in professional access control environments. Factory pre-configured for Wiegand 26-bit output, it connects directly to existing controllers, allowing installers and system integrators to deploy secure card-and-PIN access immediately - no software, portals, or programming required.
Featuring a capacitive keypad, the reader supports PIN-only or card-plus-PIN authentication, enabling higher security policies for sensitive areas. Combined with MIFARE DESFire EV3 credentials and STid Mobile ID virtual cards, it provides strong protection against cloning, interception, and relay attacks using AES encryption, Secure Messaging EV2, and Proximity Check technologies
Built on STid’s open CORE architecture, the reader eliminates vendor lock-in while protecting long-term investment. As site requirements evolve, the device can be upgraded to CORE Plus or CORE Pro functionality without replacing hardware, making it ideal for scalable, multi-site access control deployments.
Specification Sheet
- Click to download: Flyer_Architect-CORE-Start-Datasheet_v1.00_US.pdf
- Factory pre-configured Wiegand 26-bit output for instant compatibility
- STid Mobile ID ready (NFC & Bluetooth virtual credentials)
- Supports MIFARE, DESFire, EV3 secure RFID credentials
- IP65 & IK8 - rated housing for indoor and outdoor installations
- Upgrade-ready to CORE Plus / CORE Pro without replacing hardware
| Description | ARCS-R31-B/PC3-3i/1 |
|---|---|
| Standards | ISO14443 type A, ISO18092 (NFC) |
| 13.56 MHz compatibility | CORE Start® MIFARE® DESFire® EV3 2K Read range: up to 8 cm (3.15 in) |
| STid Mobile ID® compatibility | STid Mobile ID CORE Start - Bluetooth & NFC (Android only) Card Mode: up to 20 cm (7.87 in) - Remote Mode: up to 3 m (9.8 ft) |
| 125 kHz compatibility | Hybrid versions available: HID Prox, AWID, EM Read range: up to 8 cm (3.15 in) |
| Keypad | 4 bits capacitive keypad |
| Communication interfaces | Wiegand 26 bits - Can be switched to Wiegand 37 bits via optional configuration kit |
| Connections | 10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal |
| Data protection | Secure EAL5+ certified cryptoprocessor |
| Light & Audio indicator | 2 RGB LEDs & Internal buzzer |
| Power requirement (max.) | Keypad: 180 mA / 12 VDC Hybrid: 220 mA / 12 VDC |
| Power supply | 7 - 28 VDC |
| Material | ABS-PC UL-V0 (black) |
| Resistance | IK08 |
| Mounting | Compatible with any surfaces and metal walls |
| Dimensions (h x w x d) | 107 x 80 x 26 mm / Hybrid: 145.6 x 80 x 26 mm |
