Salto - Modular XS

Modular XS - Access Reader with RFID, NFC and BLE

Bluetooth Wireless Connectivity
IK09 Impact Protection rating
IP66 ingress protection rating
NFC Smartphone Access Credentials
RFID

Product Description

The SALTO Modular XS - EU Access Reader is a sophisticated access control solution engineered for seamless and secure entry.

This device integrates advanced technology within a refined aesthetic, offering a versatile and adaptable approach to managing access control. Its modular design ensures long-term utility and the capacity to evolve alongside your security requirements, presenting adaptability for your evolving security requirements.

Experience the power of modularity and innovation:

The Modular XS embodies SALTO's commitment to innovation and user-centric design. It's engineered to provide reliable, contactless access control, enhancing security and streamlining operations.

Key Features and Benefits:

  • Modular Design: The true beauty of the Modular XS lies in its adaptability. Easily interchange reader modules to support various identification technologies such as RFID (MIFARE, DESFire EV1/EV2/EV3, HID Prox, HID iCLASS), and even mobile credentials via NFC and Bluetooth. This future-proofs your investment, allowing you to upgrade or change technologies without replacing the entire unit.

  • Contactless Technology: Embrace the convenience and security of contactless access. The reader supports a wide range of leading RFID standards and mobile credentials, ensuring smooth and efficient entry for authorised users.

  • High Security: Built upon SALTO's renowned security architecture, the Modular XS employs advanced encryption and authentication protocols to safeguard your premises against unauthorised access.

  • Sleek and Modern Aesthetics: Designed to complement contemporary architectural styles, the reader boasts a clean and elegant finish. Its discreet presence enhances the visual appeal of any doorway.

  • Robust and Durable Construction: Engineered with high-quality materials, the Modular XS is built to withstand daily use and varying environmental conditions, ensuring long-lasting performance.

  • Easy Installation: Designed with simplicity in mind, the Modular XS facilitates straightforward installation, saving time and resources.


Where can the SALTO Modular XS - EU Wall Reader elevate security and convenience?

The versatility of the SALTO Modular XS - EU Wall Reader makes it an ideal access control solution for a wide range of applications and businesses, including:

  • Commercial Buildings
  • Educational Institutions
  • Healthcare Facilities
  • Hotels and Hospitality
  • Residential Buildings
  • Coworking Spaces
  • Fitness Centres and Leisure Facilities

Invest in Intelligent Access Control:

The SALTO Modular XS is more than just a device; it's an investment in a secure, flexible, and future-proof access control system. Experience the difference that intelligent design and cutting-edge technology can make. Contact us today to learn how the Modular XS can transform your access management.

Specification Sheet

Manual

  • Compatible with standard European electric boxes using the standard bases.
  • Virtual network capable through Salto Virtual Network technology.
  • Square reader design with green/red and blue LED signal.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through Salto Virtual Network technology.
  • For flush or surface mounting depending on the base (base sold separately).
  • Concealed fixing screw for greater security and improved aesthetics.
  • Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.
Description Modular XS
Credentials RFID, NFC, BLE
Connection to the door controller AWG24 twisted pair or AWG18 cable connection
IP class IP66
IK rating IK09
Certifications CE, FCC/IC, RCM, EAC
Firmware update Via ProAccess SPACE software
LED lamps Multi colour led to indicate access authorisation
Temperature Min, -35 - Max, 66
Power consumption 160 mA
Power 12V supplied by the door controller

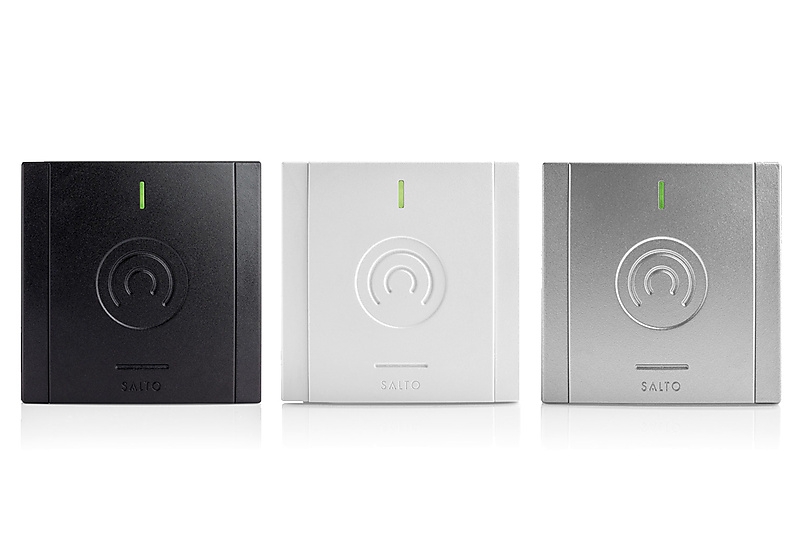

Colour Black, White, Silver
Dimensions 83 (H) x 83 (W) x 13.5 (D) mm
Weight (Net) 0.40kg
Weight (Gross) 0.45kg
