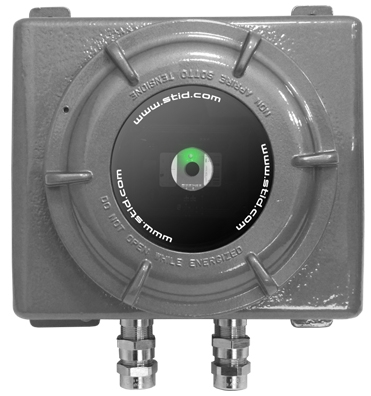

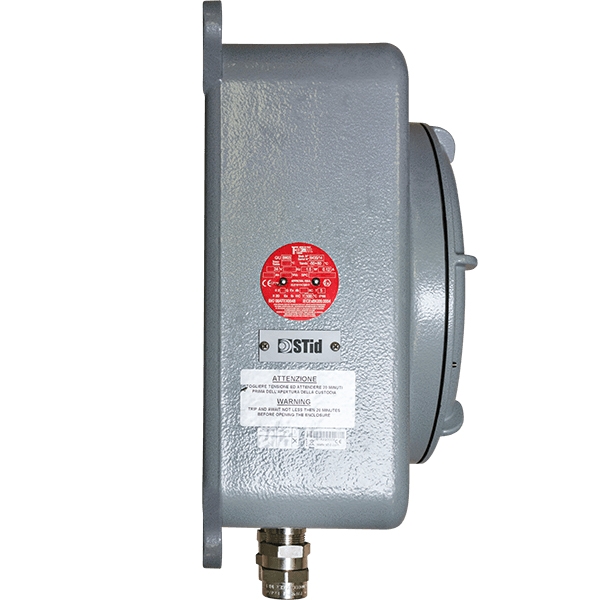

ATX2 Proximity Reader - ATEX T6 Rated for Dust-Rich Environments
Product Description
The STid ATX UHF Reader is purpose-built for long-range identification and access control in explosive environments. Fully ATEX and IECEx certified for use in Zone 1/21 areas, this reader features an integrated antenna and supports UHF EPC1 Gen 2 / ISO18000-63 standards.
It is ideal for controlling vehicle entry points, tracking critical assets, and automating flow management in hazardous industrial zones.
With a reading range of up to 4 metres, the ATX UHF Reader is perfect for logistics yards, refineries, and chemical plants where hands-free access and traceability are essential.
The rugged, IP66-rated enclosure withstands extreme weather, physical impact, and vibration, complying with MIL-STD-810 specifications.
Connectivity is seamless via PoE, TCP/IP, RS232, or RS485, ensuring compatibility with modern access systems. Designed with industrial flexibility in mind, this reader reduces installation complexity while enhancing site safety and compliance.
The STid ATX UHF is your go-to solution for dependable, explosion-proof vehicle access control.
Specification Sheet
- Click to download: Flyer_ATEX--IECEx_US.pdf
- UHF Gen2 / ISO18000-63 compatibility
- Reads up to 4m (13 ft)
- IP66, MIL-STD-810 ruggedized housing
- ATEX & IECEx certified (Zone 1/21)
- PoE and TCP/IP support
| Description | ATX UHF |
|---|---|
| Frequency | UHF |
| Chip | EPC1 Gen2 |
| Interfaces | TTL - ISO2 (Data Clock) or Wiegand / RS232 / RS485 / TCP-IP |
| Power supply | 9 - 36 VDC or PoE depending on version |
| Operating temperatures | -20°C to +70°C |
| Protection rating | IP66 level - Weather, water and dust resistant |
| Functions | Read Only EPC or encrypted and signed EPC / Read Write via SSCP v1 & v2 / Read Write via OSDP v1 & v2 (SCP) |
| Reading distances | Up to 4 m / 13.1 ft with an STid TeleTag passive tag |
| Material | Marine grade copper free aluminium, Epoxy grey RAL 9006 |
| Colour | Grey |

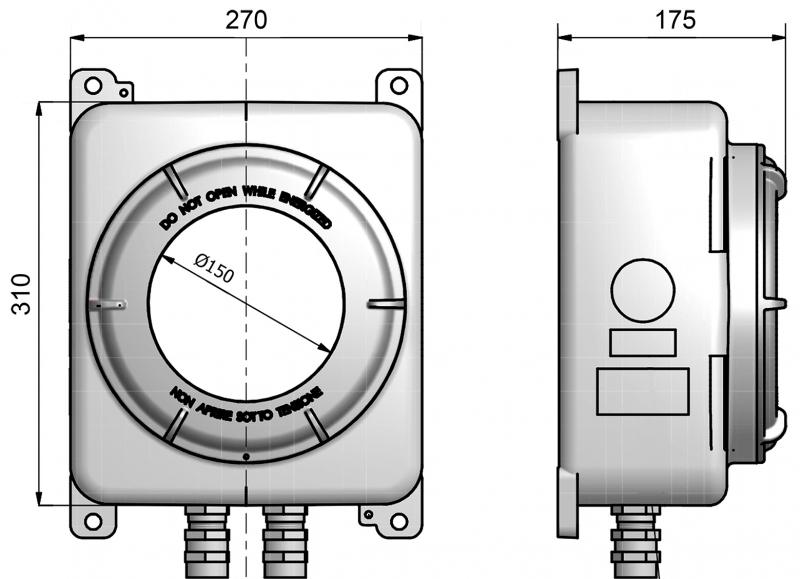

| Dimensions | 310(H) x 270(W) x 175(D) mm |
| Weight (Net) | 14.00kg |
| Weight (Gross) | 15.50kg |
