Inter-M - RM-N1000
Network System Remote Microphone Station
Product Description
The Inter-M RM-N1000 Network System Remote Microphone Station is a cutting-edge solution for broadcast paging in commercial, institutional, and enterprise environments. Engineered for seamless integration with Inter-M’s network-based systems, the RM-N1000 Paging Microphone allows users to initiate live or pre-set paging across multiple zones via a robust Ethernet connection.

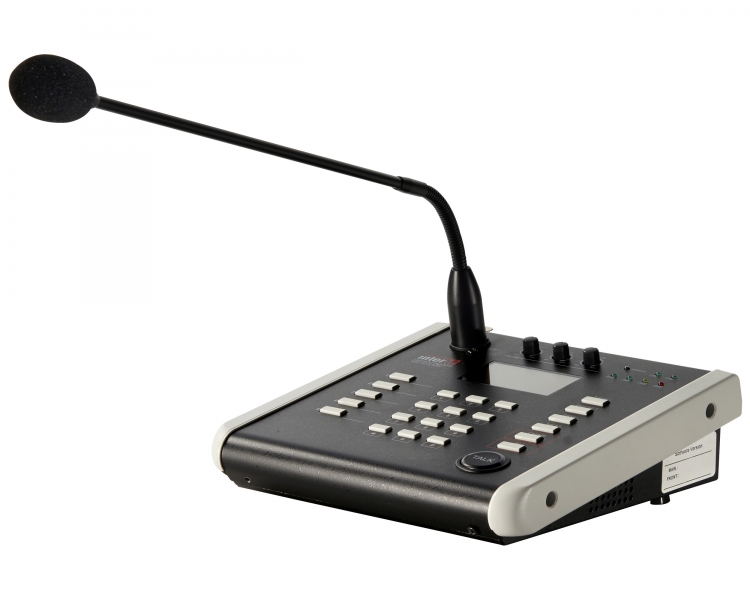

Equipped with a high-quality gooseneck microphone, this remote paging station delivers clear voice communication and reliable performance. The intuitive keypad features number buttons (0–9), an “All” button for global announcements, as well as dedicated Talk and Chime buttons. These can be custom-configured to match the operational needs of each facility, offering unparalleled flexibility.
A 2.43-inch OLED display provides clear, real-time feedback, making it easy to monitor device status, broadcasting zones, and system alerts. The built-in output level meter ensures optimal audio performance by allowing users to visually confirm signal levels. For enhanced monitoring, a monitor speaker is included to preview announcements before live broadcasting.

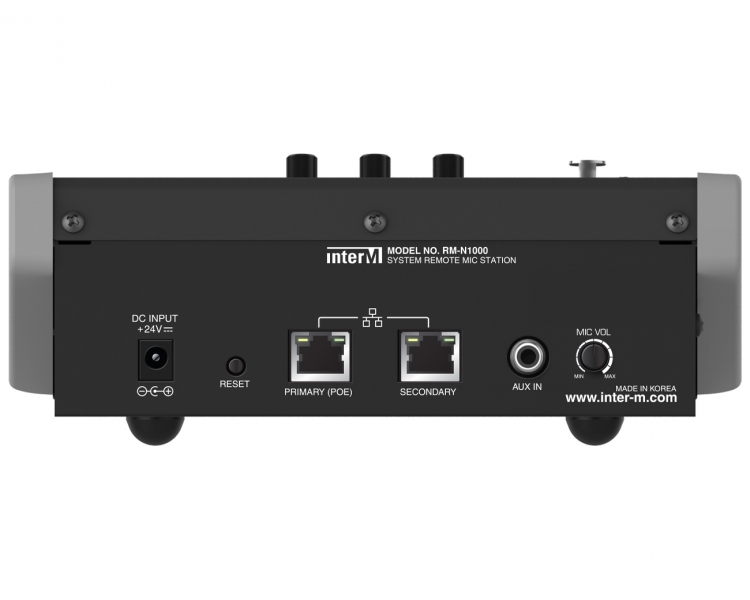

Volume levels for MIC input, AUX input, monitor output, and chime can all be independently adjusted, giving users complete control over audio settings. Designed for versatility, the RM-N1000 supports both DC 24V power input and PoE (Power over Ethernet), offering flexible installation options without the need for external power supplies.
With excellent audio specifications - including a frequency response of 100 Hz to 18 kHz, a signal-to-noise ratio above 65 dB, and total harmonic distortion under 0.1% - the RM-N1000 guarantees professional-grade audio clarity.
Equipped with a high-quality gooseneck microphone, this remote paging station delivers clear voice communication and reliable performance. The intuitive keypad features number buttons (0–9), an “All” button for global announcements, as well as dedicated Talk and Chime buttons. These can be custom-configured to match the operational needs of each facility, offering unparalleled flexibility.
A 2.43-inch OLED display provides clear, real-time feedback, making it easy to monitor device status, broadcasting zones, and system alerts. The built-in output level meter ensures optimal audio performance by allowing users to visually confirm signal levels. For enhanced monitoring, a monitor speaker is included to preview announcements before live broadcasting.
Volume levels for MIC input, AUX input, monitor output, and chime can all be independently adjusted, giving users complete control over audio settings. Designed for versatility, the RM-N1000 supports both DC 24V power input and PoE (Power over Ethernet), offering flexible installation options without the need for external power supplies.
With excellent audio specifications - including a frequency response of 100 Hz to 18 kHz, a signal-to-noise ratio above 65 dB, and total harmonic distortion under 0.1% - the RM-N1000 guarantees professional-grade audio clarity.
Whether in a school, office, or large venue, the Inter-M RM-N1000 offers an intuitive, powerful, and scalable solution for your networked paging needs.
Specification Sheet
- Click to download: IPA-100 SYSTEM_BR_E_2409_V3.pdf
Manual
- Click to download: RM-N1000_MANUAL_E (1).pdf
- Broadcast paging via audio-over-IP
- Gooseneck microphone
- 0~9 Keys, All, Talk & Chime Buttons
- 2.43 inch OLED Display
- Output Level Meter
- Monitor Speaker
- Input/Output Adjustment Volume
- 24v DC Power Input
- PoE
| Description | RM-N1000 |
|---|---|
| Microphone Input Sensitivity | -50dBV ± 3dB |
| Microphone Output Sensitivity | +10dBV ± 3dB |
| Microphone Signal-to-Noise Ratio | More than 65dB |
| Microphone THD ( | Less than 0.1% |
| Microphone Frequency Response 100 Hz ~ 18 kHz (Input: -50dBV, 1kHz) | 0dB ± 3dB |
| AUX Input Sensitivity | -10dBV ± 3dB |
| AUX Output Sensitivity | +10dBV ± 3dB |
| AUX Signal-to-noise Ratio ( | More than 75dB |
| AUX THD ( | Less than 0.1% |
| AUX Frequency Response 100 Hz ~ 18 kHz (Input: -10dBV, 1kHz) | 0dB ± 3dB |
| Network Communication | 100/1000 Base-t ( RJ-45) |
| Power Source | DC 24V / PoE |
| Power Consumption | MAX 10W |
| Dimensions | 200(W) x 73(H) x 206(D) mm |
| Weight (Net) | 1.29kg |
| Weight (Gross) | 1.60kg |
