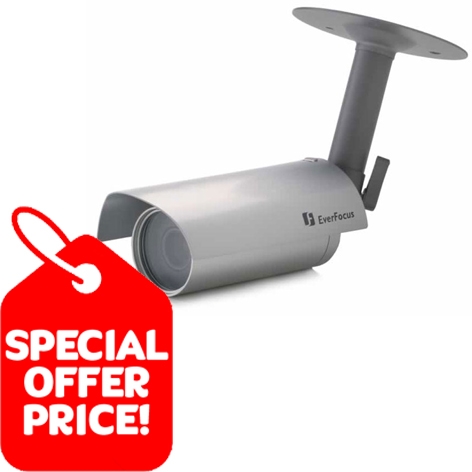

560TVL Body Camera, High Res, Sony 1/3", Varifocal Lens & Bracket, IP66, Heated, 12vDC
List Price
£131.88
$197.82
€158.25
incl. VAT
Product Description
The EZ180 series offers great performance in 1/3 inch image format Black and white CCD camera.
The EZ180 is ideal for outdoor applications such as car parks, petrol stations or shopping centres.
The sophisticated circuit design provides a heater that turns on at 10°C for cold weather.The EZ180 will provide protection against the elements and provide an excellent quality picture.
- High-Resolution: 560TV Lines
- Built-in vari-focal lens for versatile application.
- Designed with sturdy aluminum shell specifically for outdoor surveillance
- Removable sun shield
- The heater allows the camera to be used in extremely low temperature to -46 C
| Description | EZ180/CV1 |
|---|---|
| Video Format | EIA or CCIR |
| Picture element | 768(H)x494(V)(EIA) 752(H)x582(V)(CCIR) |
| Horizontal resolution | 560 TV Lines |
| Video output | 1Vp-p/75 ohm |
| Lens F stop range | 1.6~360 |
| Lens focal length | Vari-focal f=3.5mm~8mm |
| Sensitivity | 1.0 lux/F=1.2 |
| S/N ratio | Over 48 dB |
| Auto white balance | On/Off switch |
| Back light comp | On/Off switch |
| Auto gain control | On/Off switch |
| Flickerless | On/Off switch |
| Sync.mode | Internal sync |
| Weatherproof ratings | IP66 |
| Power source | DC12V/AC24V |
| Power consumption | 3W max.15W when heater active |
| Dimension (With sun shield) | 83(W)x70(H)x172(L)mm |
| Dimension (Without sun shield) | 57(D)x132(L)mm |
| Heater auto activated temperature | 10°C |
| Operation temperature | -46 Cto +50 |
| Weight (Net) | 0.52kg |
| Weight (Gross) | 1.25kg |
