CYP - PUV-3050TX-UA
HDBaseT3 Full 4K HDMI Transmitter with USB, PoH, Audio Pathway & HDMI Bypass
Product Description
The CYP PUV-3050TX-UA is a cutting-edge HDBaseT 3.0 transmitter that delivers uncompressed 4K@60Hz (4:4:4) video, multi-channel audio, and comprehensive control via a single Cat.6A/7 cable – all over distances up to 40m. Designed for seamless integration in high-demand AV environments, this unit supports HDMI 2.0, USB 2.0, bidirectional analogue audio, IR and RS-232 control, plus PoH for simplified power management.
Perfect for mission-critical installs where low-latency and high-resolution are essential – such as corporate meeting rooms, medical displays or education settings – the PUV-3050TX-UA also supports local HDMI output for on-site monitoring and includes a built-in cable test function for quick deployment diagnostics.
-
HDBaseT 3.0 compliant: Transmit uncompressed 4K@60Hz (4:4:4) over a single Cat.6A/7 cable up to 40 metres
-
Flexible USB 2.0 and KVM extension: Supports two USB-A ports and Micro USB host connectivity for real-time control across transmitter and receiver
-
Integrated analogue audio I/O: Bi-directional stereo audio for advanced sound routing
Pair it with a compatible CYP receiver (such as the PUV-3050RX-UA ) to unlock full USB KVM functionality for extended device control.
Application:
-
Corporate AV systems for boardroom screen sharing and control
-
Education and training centres for centralised multimedia delivery
-
Healthcare environments requiring zero-latency, high-fidelity video
-
Government and public sector AV infrastructure
-
KVM control in broadcast and production studios
Manual
- Click to download: PUV-3050TX-UA_PDF-Manual_RDV1.2.pdf
- Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
- Local HDMI bypass output for monitoring
- PoH support for powering the receiver
- Built-in HDBaseT cable test with LED feedback
- Full bi-directional IR & RS-232 pass-through
- USB-C (USB 3.0) video compatible
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- 1 x USB-C input; 1 x HDBaseT3 and HDMI output
- 2 USB 2.0 Type-A device ports and 1 USB-C host port
- HDMI output functions as a local monitor
| Description | PUV-3050TX-UA |
|---|---|

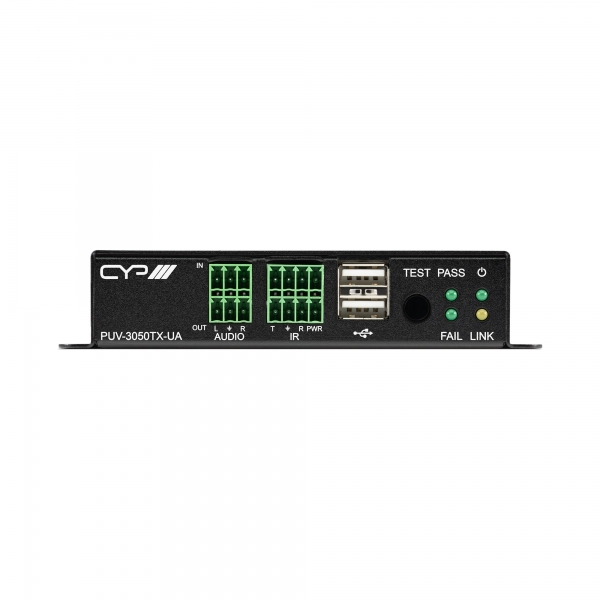

| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| - | 1x USB Micro [1x Service Port Propriety Data] |
| - | 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] |
| - | 2x USB Type A [2x USB pathway Propriety Data] |

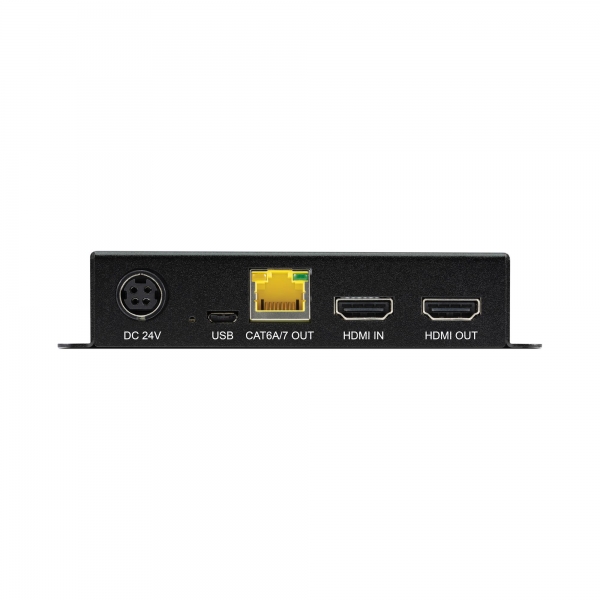

| Outputs | 1x HDMI [1x HDMI local bypass Uncompressed AV and Data] |
| - | 1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data] |
| - | 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output] |
| PSU | 24V/2.7A |
| Dimensions | 128 (W) x 25 (H) x 108 (D) mm |
| Weight (Net) | 0.40kg |
| Weight (Gross) | 0.45kg |
