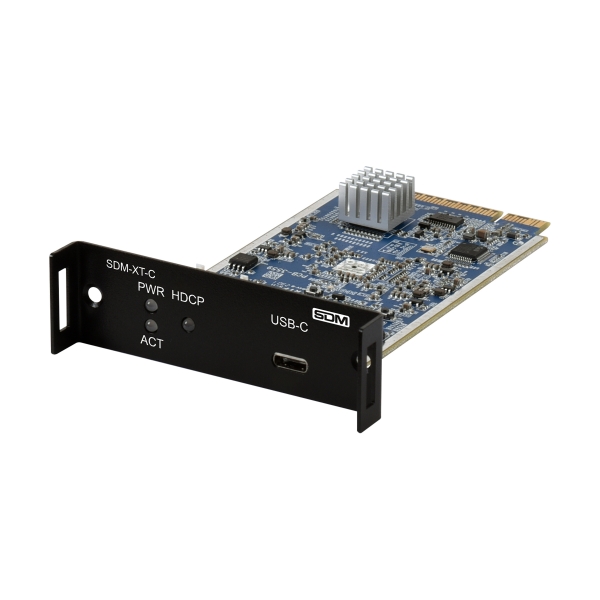

CYP SDM-XT-C: 4K HDMI to USB-C Capture & Recorder Module
Product Description
The CYP SDM-XT-C is a cutting-edge 4K HDMI to USB-C video capture and recorder SDM module, designed to seamlessly integrate into your existing CYP SDM systems, such as with core modules like the OR-PIP42SDMO. This powerful module supports impressive resolutions up to 4K UHD+ (18Gbps) for high-quality PC capturing and professional re-broadcast applications.
A standout feature is its special video timing stabilization, which diligently prevents USB capture streams from locking up or dropping, even when the HDMI input source experiences intermittency or disconnection, ensuring uninterrupted content flow. Utilising universal UAC (USB Audio Class) and UVC (USB Video Class) standards, the SDM-XT-C offers broad compatibility with most common video capture, chat, and streaming software, including robust support for free Open Broadcaster Software (OBS) across Windows PC, macOS, and Linux, making it an indispensable tool for content creators, educators, and businesses.
Here are four key features of the CYP SDM-XT-C module:
- 4K UHD+ Video Capture: Supports resolutions up to 3840x2160p@60 for superior video quality.
- Reliable Stream Stability: Features video timing stabilization to prevent capture stream lock-ups or drops.
- Universal Software Compatibility: Works with most common streaming, chat, and video capture software via UAC/UVC standards.
- SDM System Integration: Designed as an output module for seamless use with CYP's core SDM products.
Specification Sheet
- Click to download: SDM-XT-C_Datasheet_v1.01.pdf
- Supports PC video capturing for live streaming on Facebook, YouTube or Twitch channels via OBS
- Supports video capturing for communication software
- A useful capture tool for meeting and classroom application
| Description | SDM-XT-C |
|---|---|
| Input Port | 1×CYP Module (Edge Connector) |
| Output Port | 1 USB (Type-C) |
| Control I/O | 1 USB (Type-C) |
| HDMI Compliance | HDMI 2.0 (Edge Connector) |
| Input Signal Type | 4K 60 YUV 4:4:4 |
| Output Signal Type | 4K 30 YUV 4:2:0 |
| Maximum Input | 1×CYP Module (Edge Connector) 3840×2160p@60 |
| Audio output | LPCM (2 Channels) |
| Type | TypeC |
| Generation | USB3.2 Gen1 |
| Transfer Rate | 5Gbps |
| Chassis Material | Metal (Steel) |
| Chassis Color | Black |
| Dimensions (W×H×D) | 82mm×25mm×111mm [Case Only] 82mm×25mm×122mm [All Inclusive] |
| SDM-XT-C | 4K HDMI to USB-C Capture & Recorder Module |
| OR-XT42PIP-SDMO | Multi-view Modular Processor with SDM Output Slot |
| Weight (Net) | 5.50kg |
| Weight (Gross) | 6.00kg |
