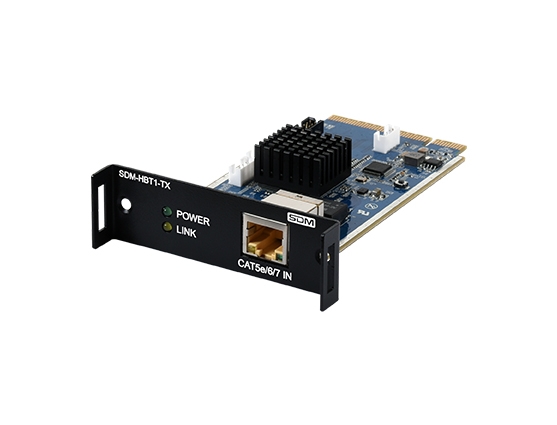

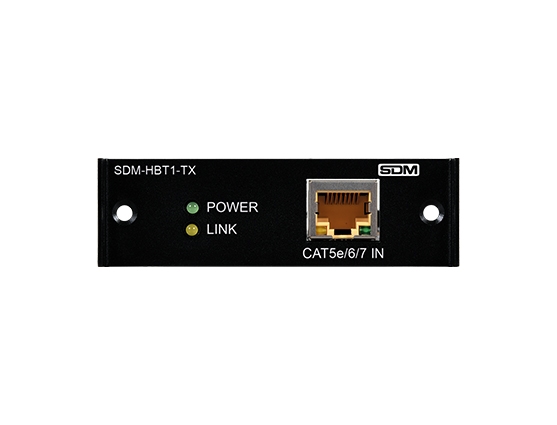

SDM-HBT1-TX - HDBaseT1 Transmitter SDM Module
Click on images to enlarge
SDM-HBT1-TX - HDBaseT1 Transmitter SDM Module
SDM-HBT1-TX - HDBaseT1 Transmitter SDM Module
SDM-HBT1-TX - HDBaseT1 Transmitter SDM Module
Recently Viewed
cie group -
List Price £166.72 incl. VAT
CYP - SDM-HBT1-TX

HDBaseT1 Transmitter SDM Module

4K/UHD Support
HDBaseT
HDCP 2.2
HDMI - High Definition Multimedia Interface
List Price
£166.72
$0.00
€0.00
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

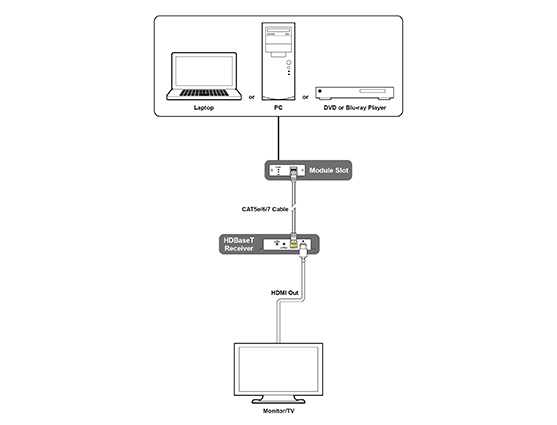

The CYP SDM-HBT1-TX is a powerful and compact HDBaseT1 transmitter module designed for integration into CYP SDM-compatible platforms. Delivering uncompressed 4K@60Hz (4:2:0) video and multi-channel audio over a single CAT.5e/6/7 cable, it’s ideal for commercial AV environments requiring reliable long-distance transmission.

It supports HDMI 2.0, HDCP 2.2, Deep Colour up to 12-bit, and pass-through of advanced audio formats including LPCM, Bitstream and HD Bitstream. With WebGUI support for firmware upgrades and diagnostics, this robust steel-cased module is perfect for classrooms, meeting spaces, and digital signage setups.

Manual

  • Transmits 4K@60Hz (4:2:0, 8-bit) video over CAT cable
  • Supports distances up to 70m (1080p) or 40m (4K)
  • HDMI 2.0 & HDCP 2.2 compliant
  • Supports 12-bit Deep Colour and CEC bypass
  • Pass-through for LPCM, Bitstream, and HD Bitstream audio
  • WebGUI interface for firmware updates & diagnostics
  • Compact SDM form factor
  • Metal chassis with ESD protection
  • Low power consumption
  • Compatible with CYP SDM platforms
Description SDM-HBT1-TX
HDBaseT Bandwidth 10.2Gbps
Video Resolution Up to 4096×2160p@60Hz (4:2:0)
Input 1× HDBaseT (RJ-45)
Card Slot Format CYP SDM Module
Audio LPCM (up to 8ch), Bitstream, HD Bitstream
Material Steel
Colour Black
Operating Temp 0C - 40C
ESD Protection ±8kV (Air), ±4kV (Contact)
WebGUI Supported
Supported Cable CAT.5e/6/6A/7
Max Distance 70m @1080p, 40m @4K
Dimensions 122 (W) × 25 (H) × 82 (D) mm
Weight (Net) 0.06kg
Weight (Gross) 0.08kg
