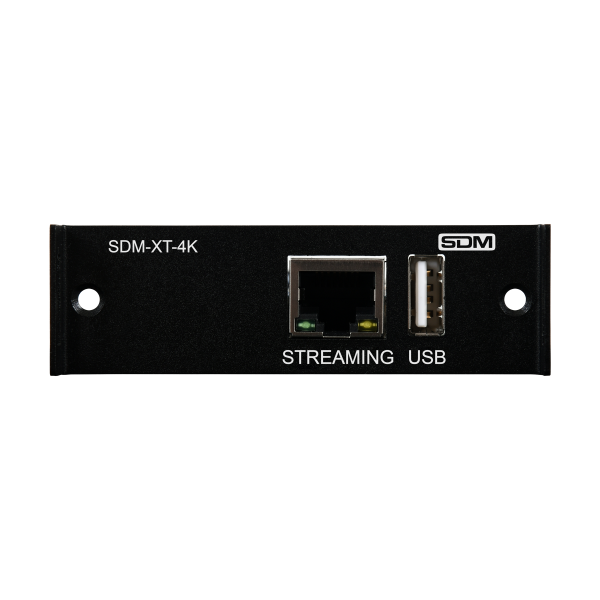

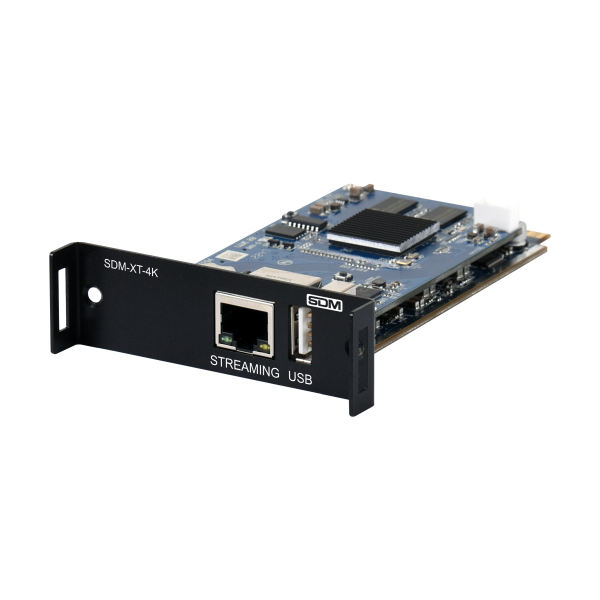

CYP - SDM-XT-4K
4K H.265 Streaming SDM Output Module
Product Description
The ability to seamlessly capture, stream, and record high-quality video is no longer a luxury – it's a necessity. Introducing the CYP SDM-XT Series, a revolutionary line of Signal Diversified Modules designed to elevate your audiovisual workflow and deliver unparalleled flexibility.
Built as modular additions to CYP's core SDM products, these cards offer a robust and adaptable solution for a multitude of applications. Experience the future of AV integration, where versatility meets uncompromising performance.
Key Features & Benefits:
The CYP SDM-XT Series stands out with a suite of features engineered for professional-grade performance and ease of use:
- Unrivalled 4K Video Performance:
- Versatile Streaming & Recording Capabilities:
From live broadcasting to content archiving the SDM-XT modules offer comprehensive streaming and recording functionality.
- Live Streaming:
- Independent Recording:
- High-Efficiency Encoding:
- Flexible Protocol Support:
- Modular Design for Scalability:
- Robust Signal Stability (SDM-XT-C specific):
- Broad Software Compatibility (SDM-XT-C specific):
Leveraging UAC (USB Audio Class) and UVC (USB Video Class) standards, the SDM-XT-C supports most common video capture, chat, and streaming software, including popular open-source solutions like OBS (Open Broadcaster Software) across Windows, macOS and Linux.
Where the SDM-XT Series Excels:
The versatility and high performance of the CYP SDM-XT Series make it an indispensable tool across a wide array of professional environments:
- Education:
- Lecture Capture & Distance Learning
- Lecture Capture & Distance Learning
- Corporate & Business:
- Conference & Meeting Rooms
- Live Event Broadcasting
- Content Creation & Marketing
- Conference & Meeting Rooms
- House of Worship:
- Live Sermon Broadcasting
- Event Archiving
- Broadcast & Media Production:
- Remote Production
- Streaming for Niche Markets
- Security & Surveillance:
- Live Monitoring & Recording
- Retail & Digital Signage:
- Live Product Demonstrations
- Dynamic Content Delivery
The CYP SDM-XT series redefines what's possible in professional AV, offering a future-proof solution that adapts to the demands of modern content creation and distribution.
Specification Sheet
- Click to download: SDM-XT-4KSDM-S301E_Datasheet_v1.02.pdf
Manual
- Click to download: SDM-XT-4K_PDF-Manual_RDV1.pdf
- Generates a stream Primary stream for large screen use and 3 Service targeted streams for mobile devices
- Stream encoding is capable at 4K resolutions, either up to 4K60 4:2:0 or 4K30 4:4:4
- Supports live direct streaming to Facebook, YouTube, Twitch channels etc
- Supports independent recording to a user-determined destination
- Recorded video can be stored on locally connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS
- For use with any of CYP's output based SDM core Products
| Description | SDM-XT-4K |
|---|---|
| Inputs | Local USB recording storage Propriety Data [1x USB Type A] |
| Outputs | 4K Encoded AV & Data stream [1x RJ45] |
| PSU | N/A |
| Bi-directional Port | 1 GbE LAN (RJ-45) |
| HDMI Compliance | HDMI 2.0 |
| Maximum Output | LAN (Streaming) |
| Resolutions | 3840×2160p at 60 |
| Chassis Material | Metal (Steel) |
| Chassis Color | Black |
| Dimensions | 82 (W) x 25 (H) x 111 (D)mm |
| Weight (Net) | 0.10kg |
| Weight (Gross) | 0.20kg |
