SDM-WPS-HP - SDM-WPS-HP Hyshare Pro Wireless Receiver Module
Click on images to enlarge
SDM-WPS-HP - SDM-WPS-HP Hyshare Pro Wireless Receiver Module
SDM-WPS-HP - SDM-WPS-HP Hyshare Pro Wireless Receiver Module
SDM-WPS-HP - SDM-WPS-HP Hyshare Pro Wireless Receiver Module
SDM-WPS-HP - SDM-WPS-HP Hyshare Pro Wireless Receiver Module
Recently Viewed
cie group -
List Price £781.99 incl. VAT
CYP - SDM-WPS-HP

SDM-WPS-HP Hyshare Pro Wireless Receiver Module

Android OS
Apple Compatible
HDMI - High Definition Multimedia Interface
USB C
List Price
£781.99
$0.00
€0.00
incl. VAT
Show prices in GBP
Show prices in USD
Show prices in EUR

Product Description

The CYP SDM-WPS-HP is a high-performance wireless receiver module designed for effortless screen sharing and real-time collaboration. Supporting Windows, macOS, Android and iOS platforms, it allows users to cast content from their devices without cables, drivers, or technical disruption – making it perfect for modern meeting rooms, classrooms, and collaborative spaces.

Easily integrated into CYP’s modular SDM platforms, such as the CPLUS-V32SDM or OR-32SDMI matrix switcher, the Hyshare Pro receiver enables wireless content sharing via the Hyshare Pro App, browser (Chrome/Edge), or the optional Hyshare Pro Pod.


Key Features:

  • Universal Compatibility
    Supports screen mirroring from Windows, macOS, Android, and iOS devices via app, browser, or pod.

  • Collaboration-Ready Tools
    Includes screen capture, annotation, remote viewing, and whiteboard functionality – ideal for interactive sessions.

  • Multi-View Capability
    View up to four wireless sources on a single display – ideal for team collaboration and comparison.

  • HDMI Output
    Outputs up to 4K UHD (3840x2160p @30Hz) over HDMI via PCIe, ensuring crisp visuals for professional environments.

  • Simple Integration
    Designed to slot seamlessly into CYP SDM input-ready platforms, creating a compact and modular AV system.


Technical Specifications:

Video Output:

  • HDMI 1.4
    3840x2160p @30Hz RGB

Input Signal Type:

  • IEEE 802.11ac (2.4GHz / 5GHz dual-band)

Audio Support:

  • LPCM 2-channel via HDMI out

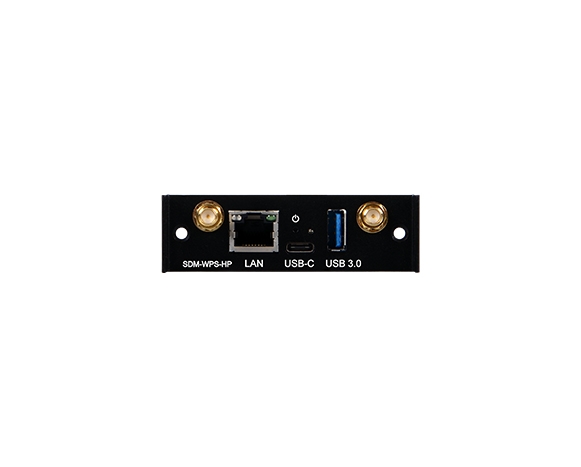

Ports:

  • 1x HDMI Out (PCIe)

  • 1x USB Type-A
    1x USB Type-C

  • 1x GbE LAN (RJ-45)

USB Transfer Speed:

  • USB 3.2 Gen1
    Up to 5Gbps

Control & Updates:

  • WebGUI firmware update via Hyshare Pro

Chassis:

  • Black steel enclosure

  • Dimensions: 82 × 25 × 123mm (module only)

  • Weight: 150g


Compatible With:

  • CPLUS-V32SDM – SDM Input-Compatible Matrix System

  • OR-32SDMI – UHD+ Modular Matrix Switcher with USB Ethernet Hub

  • Hyshare Pro Pod – Optional casting accessory (sold separately)


The SDM-WPS-HP brings secure, cable-free collaboration into any AV system – with powerful tools to match.

For integration into the OR-PIP42SDMO

Take a look at the full CYP range here

Specification Sheet

Manual

  • Highly compatible with Windows, macOS, Android, and iOS
  • Screen sharing via browser (Chrome or Edge), Hyshare Pro App or the optional
  • Hyshare Pro Pod
  • Collaboration tools: screen capture, annotation, and whiteboard.
  • View the main screen remotely through the Hyshare Pro App.
  • Multi-view: up to 4 sources simultaneously.
Description SDM-WPS-HP
Output Port 1 PCIe
Bi-directional Port 1 GbE LAN (RJ-45)
Control I/O 1 USB (Type-A) 1 USB (Type-C)
HDMI Compliance HDMI 1.4
Input Signal Type IEEE 802.11ac 2.4/5GHz
Output Signal Type 3840x2160p@30Hz
Maximum Output HDMI (PCIe) 3840x2160p@30Hz RGB
HDMI Out LPCM (2 Channels)
Generation USB3.2 Gen1
Transfer Rate 5Gbps
Chassis Material Metal (Steel)
Chassis Color Black
Hyshare Pro WebGUI
SDM-WPS-HP Hyshare Pro Wireless Receiver Module
OR-32SDMI UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
Dimensions 82(W) x 25(H)×123(D) mm [Module Only]
Weight (Net) 0.15kg
Weight (Gross) 0.18kg
