March Networks - 43228-101

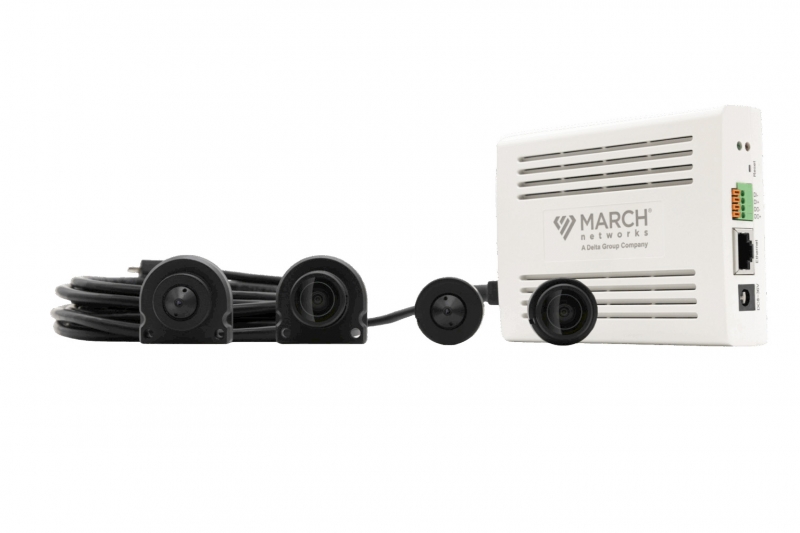

EL5 Covert Main Unit (ATM Covert Camera Encoder Unit)
Product Description
The March Networks EL5 Covert Main Unit has been engineered specifically for high-security, covert video surveillance environments where discretion, reliability, and performance are critical.
Designed with a split architecture, the EL5 main unit allows the camera head to be installed up to 5 metres away, significantly reducing visibility and the risk of tampering while maintaining optimal positioning for surveillance. This modular design not only enhances installation flexibility but also simplifies maintenance and servicing, making it a practical choice for engineers and system integrators.
Security and compliance are central to the EL5 platform. With NDAA compliance, robust cybersecurity protocols, and support for secure network authentication, it is well-suited for regulated industries. Intelligent analytics including motion detection, face detection, and tamper alerts provide proactive monitoring capabilities, enabling faster incident response and enhanced operational insight.
Applications:
- ATM surveillance and anti-fraud monitoring
- Banking hall and teller counter security
- Retail POS and loss prevention monitoring
- Covert doorway or entrance surveillance
- High-security environments requiring hidden CCTV systems
- Transport ticketing machines and kiosks
- Corporate offices requiring discreet monitoring
Specification Sheet
- Click to download: Datasheet - EL5 ATM Covert - 3541 - Apr 2026.pdf
- Advanced WDR Pro for superior image clarity in difficult lighting
- High-performance encoder supporting up to 5MP video resolution
- Modular split design supporting remote camera head installation up to 5m
- Integrated intelligent analytics including motion and face detection
- Secure, NDAA-compliant platform with advanced network security protocols
| Description | 43228-101 |
|---|---|
| Image Sensor | 1/2.7 Progressive CMOS |
| Effective Pixels | 4.0 megapixels (Pinhole); 5.0 megapixels (Fisheye) |
| Field of View | Pinhole: 93° (Horizontal) 48° (Vertical) 117° (Diagonal) Fisheye: 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Video Compression | H.265, H.264, MJPEG |
| Resolution | 2688x1520 (Pinhole); 1920x1920 (Fisheye) |
| Audio Streaming | Two-way audio (full duplex) |
| Video Analytics | Smart motion, face detection |
| Regulatory Model | C5601A |
| Safety | UL/CSA62368-1, IEC/EN62368-1 |
| Dimensions (mm) | 105 (L) x 84 (W) x 31.2 (H) |
| Weight (Net) | 0.19kg |
| Weight (Gross) | 0.25kg |
