STid - ARCS-R31-C/PC3-3i/1

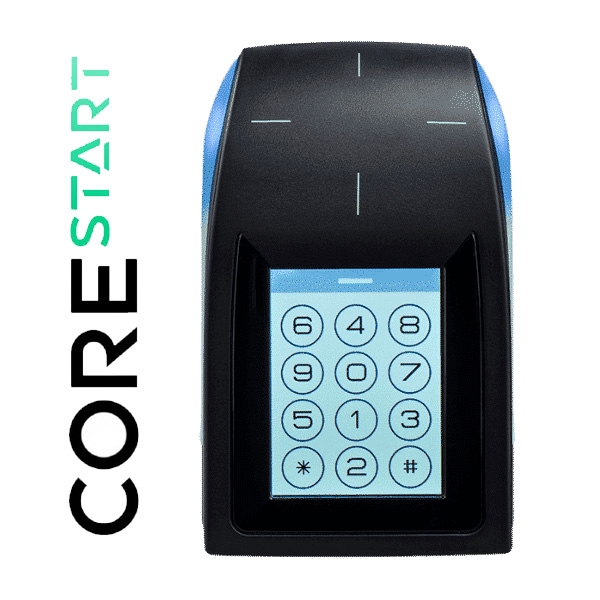

Touchscreen & Scramble Keypad CORE Start Reader, Pre-configured Wiegand 26 bits
Product Description
The Architect Touchscreen & Scramble Keypad CORE Start Reader(Wiegand 26-bit) is part of the CORE Start range, designed to deliver enterprise-grade access control security without complexity. Factory pre-configured and ready to connect, this reader enables fast installation into existing access control systems while maintaining the highest levels of cryptographic protection.
Enhanced PIN security through a capacitive touchscreen scramble pad ensures that keypad layouts are randomly displayed, significantly reducing the risk of PIN code observation and replay attacks. Combined with secure card technologies, this makes the reader ideal for environments requiring both convenience and elevated authentication assurance.
Built around MIFARE DESFire EV3 technology, the reader leverages AES encryption, Secure Messaging EV2, key diversification, and Proximity Check to protect against cloning, interception, and relay attacks. With integrated support for STid Mobile ID virtual credentials, the reader is fully mobile-ready, allowing organisations to transition seamlessly from physical cards to smartphone-based access.
Specification Sheet
- Click to download: Flyer_Architect-CORE-Start-Datasheet_v1.00_US.pdf
- Factory pre-configured Wiegand 26-bit output
- Capacitive touchscreen scramble keypad for secure PIN entry
- Supports MIFARE DESFire EV3 and STid Mobile ID credentials
- Plug & Play deployment - no software or configuration required
- IP65 rated for indoor and outdoor installations
| Description | ARCS-R31-C/PC3-3i/1 |
|---|---|
| Standards | ISO14443 type A, ISO18092 (NFC) |
| 13.56 MHz compatibility | CORE Start® MIFARE® DESFire® EV3 2K Read range: up to 8 cm (3.15 in) |
| STid Mobile ID® compatibility | STid Mobile ID CORE Start - Bluetooth & NFC (Android only) Card Mode: up to 20 cm (7.87 in) - Remote Mode: up to 3 m (9.8 ft) |
| 125 kHz compatibility | Hybrid versions available: HID Prox, AWID, EM Read range: up to 8 cm (3.15 in) |
| Keypad | 4 bits scramble pad |
| Communication interfaces | Wiegand 26 bits - Can be switched to Wiegand 37 bits via optional configuration kit |
| Connections | 10-pin plug-in connector (5 mm / 0.2 in) 2-pin plug-in connector (5 mm / 0.2 in): O/C contact - Tamper detection signal |
| Data protection | Secure EAL5+ certified cryptoprocessor |
| Light & Audio indicator | 2 RGB LEDs & Internal buzzer |
| Power requirement (max.) | Touchscreen: 220 mA / 12 VDC Hybrid: 260 mA / 12 VDC |
| Power supply | 7 - 28 VDC |
| Material | ABS-PC UL-V0 (black) |
| Resistance | None |
| Mounting | Compatible with any surfaces and metal walls |
| Dimensions (h x w x d) | 128 x 80 x 31 mm / Hybrid: 156.4 x 80 x 30.5 mm |
