CYP - PUV-1210PL-KIT

HDBaseT Lite HDMI Transmitter & Receiver Kit (60m, 4K, PoH, IR & RS-232)

4K/UHD Support
HDBaseT
HDMI - High Definition Multimedia Interface

Product Description

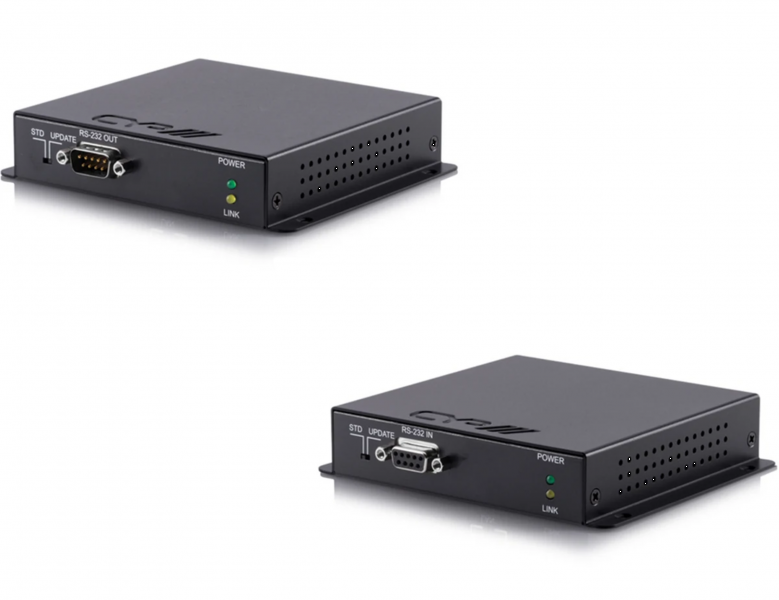

The PUV-1210PL-KIT is a professional-grade HDMI over HDBaseT Lite Transmitter and Receiver kit, designed to deliver uncompressed video, audio, control, and power via a single CAT5e/6/7 cable up to 60 metres. Supporting 4K2K video, PoH (Power over HDBaseT), and bi-directional IR and RS-232 control, this space-efficient solution is ideal for installations where long-range, high-quality transmission is critical.

This compact kit offers seamless integration in lecture theatres, showrooms, corporate meeting spaces, and home AV systems. With HDMI and DVI compliance, support for CEC bypass, and robust ESD protection, the PUV-1210PL-KIT guarantees performance, protection, and flexibility.

Installation is made simple with power delivered from the transmitter to the receiver using standard 48V PoH, reducing cabling requirements and simplifying system setup.

Key Features:

  • Uncompressed 4K UHD Transmission: Supports resolutions up to 4K2K@60Hz YUV_420 with HDMI 3D and 21:9 format compatibility for a full-spectrum AV experience.

  • PoH-Powered Receiver: Eliminate excess power adapters – the RX is powered directly from the TX using 48V Power over HDBaseT.

  • Control Integration: Built-in IR and RS-232 ports support remote control and automation integration, making it ideal for professional AV environments.

Application:

  • Education (lecture halls, classrooms)

  • Corporate meeting rooms

  • AV showrooms and demo suites

  • Retail digital signage

  • Home entertainment systems

Manual

  • HDCP2.2 Compliant
  • High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
  • Supports 3D signals
  • Supports HDCP repeating and CEC functions
Description PUV-1210PL-KIT

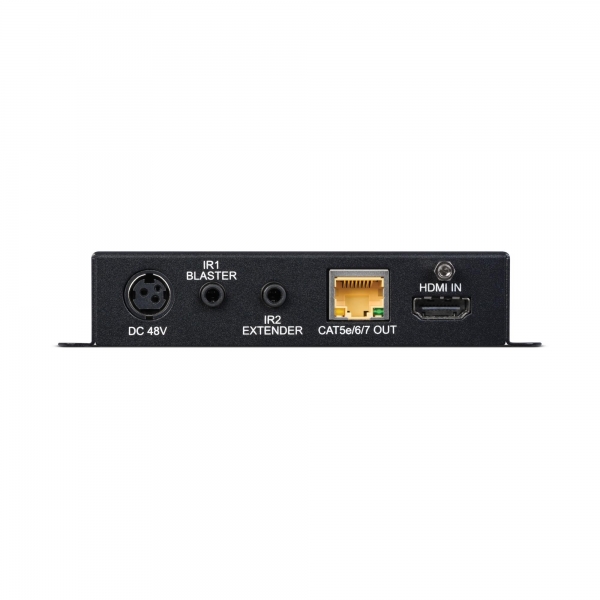

TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

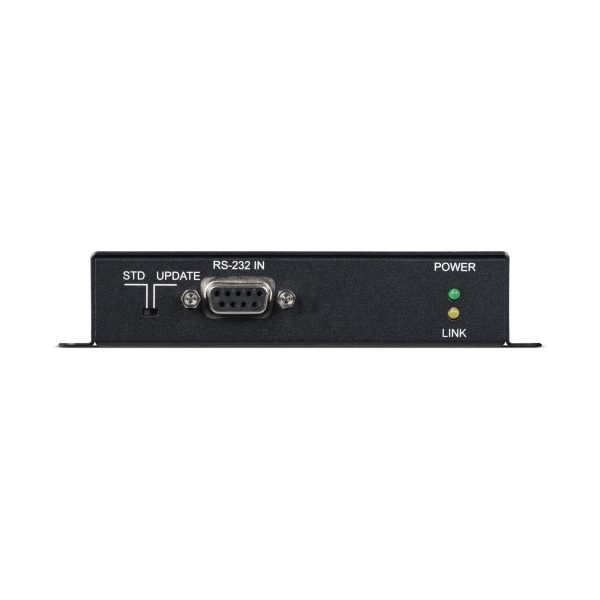

- 1x 9pin Dsub [1x RS-232 Data]
TX Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
TX PSU 48V/0.83A
RX Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
RX Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x 9pin Dsub [1x RS-232 Data]
RX PSU PoH
TX Dimensions 128 (W) x 25 (H) x 108 (D) mm
RX Dimensions 128 (W) x 25 (H) x 108 (D) mm
Weight (Net) 0.37kg
Weight (Gross) 0.90kg
