CYP - PUV-1810-AVLC-KIT

HDBaseT1 Full 4K AVLC Series Transmitter & Receiver Kit with LAN & PoH

4K/UHD Support
AVLC
HDBaseT
HDCP 2.2
HDMI - High Definition Multimedia Interface
UHD Ultra High Definition

Product Description

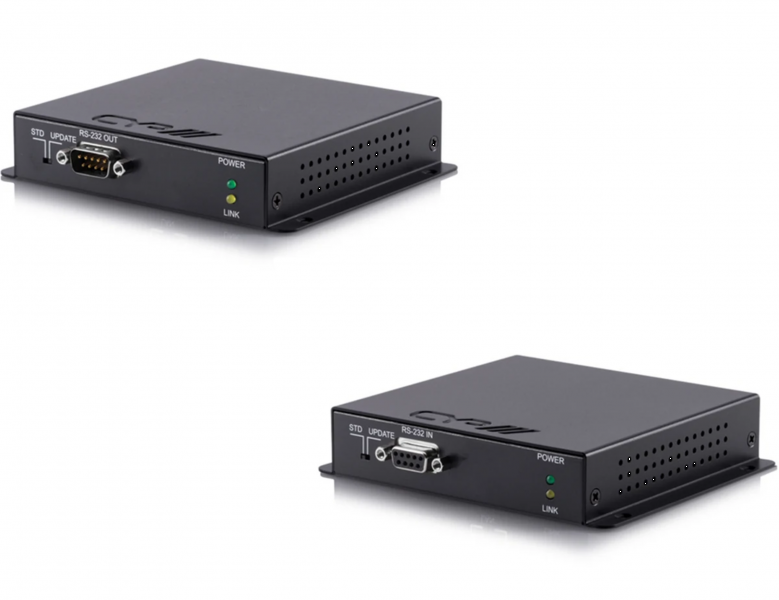

The CYP PUV-1810-AVLC-KIT is a professional-grade HDBaseT extender set designed to deliver uncompressed 4K UHD HDMI, Ethernet, and control signals over a single Cat.5e/6/7 cable up to 100 metres.

With full compliance to HDMI 2.0 and HDCP 2.2 standards, this solution ensures top-tier compatibility with the latest AV sources and displays. Using advanced Adaptive Visually Lossless Compression (AVLC), the kit seamlessly handles bandwidth-heavy sources such as 4K@60Hz (4:4:4, 8-bit) and HDR video content, preserving image quality without visual compromise.

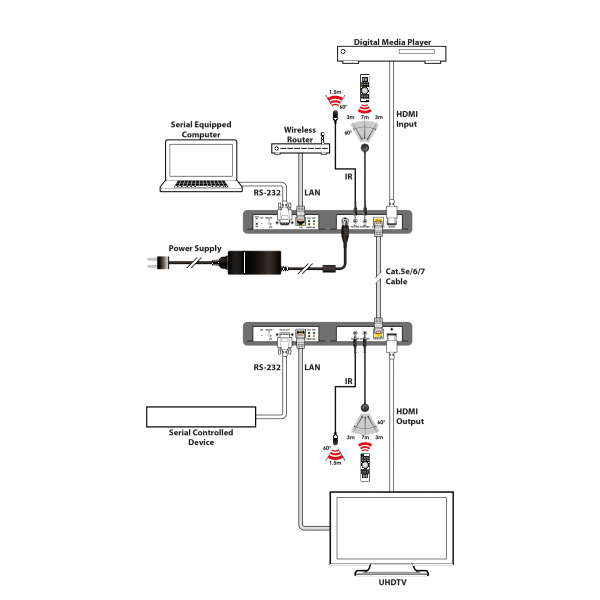

LAN, bi-directional IR, and RS-232 are transmitted alongside video and audio, supporting full control and networking functionality across both transmitter and receiver. Furthermore, the Receiver unit is powered via PoH (Power over HDBaseT) from the Transmitter, eliminating the need for additional power sources and simplifying installation.

Three standout features include:

  1. AVLC for Full-Bandwidth 4K: Overcomes HDBaseT’s bandwidth limits with AVLC, delivering flawless 4K@60Hz (4:4:4) video even over longer cable distances. A selectable STD/HQ mode ensures adaptable performance between image fidelity and cable reach.

  2. Integrated PoH for Streamlined Installations: The Receiver is powered directly from the Transmitter via 48V PoH, reducing cable clutter and simplifying deployment in hard-to-reach areas.

  3. Comprehensive Signal Support: Transmits HDMI, IR, RS-232 and 100BaseT Ethernet over a single cable, enabling both AV distribution and remote control/network extension in one compact solution.

Application:

  • Corporate meeting rooms and AV conference systems

  • Lecture theatres and educational environments

  • Residential home entertainment systems

  • Commercial showrooms and display zones

  • Digital signage and control centres

Manual

  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
  • AVLC (Adaptive Visually Lossless Compression)
  • AVLC features manual selection between high quality and standard compression from TX (useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
  • Supports Deep Colour input and output up to 12-bit
Description PUV-1810-AVLC-KIT

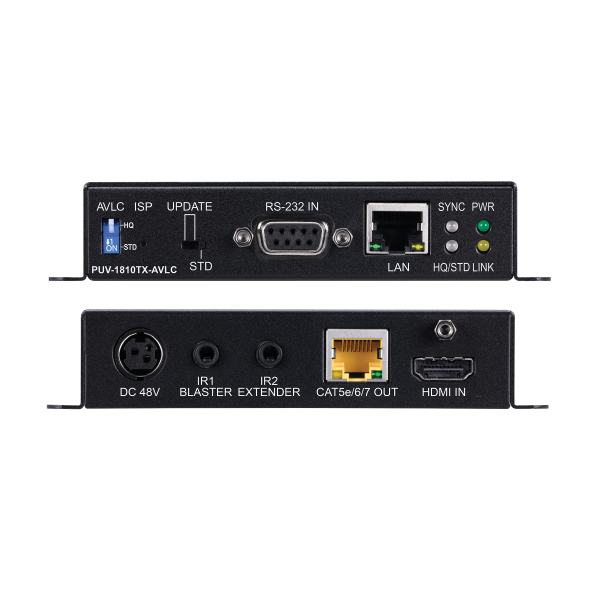

TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
- 1x RJ45 [1x LAN Serving]
TX Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
TX PSU 48V/0.83A
Dimensions 128 (W) x 25 (H) x 108 (D) mm

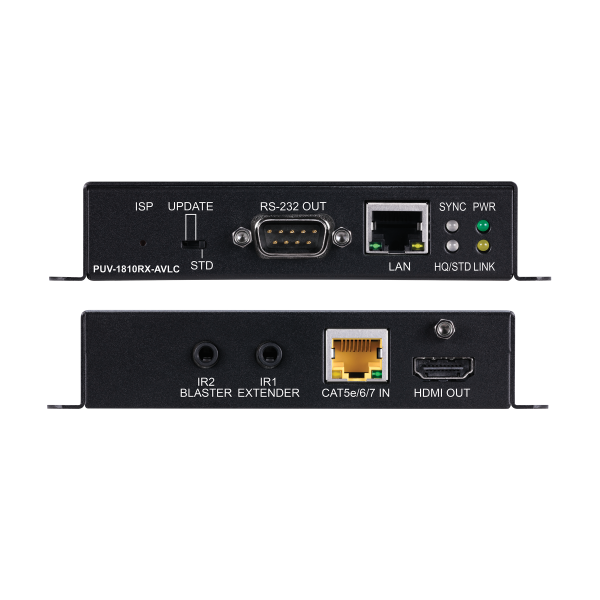

RX Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
RX Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
- 1x RJ45 [1x LAN Serving]
RX PSU PoH
Dimensions 128 (W) x 25 (H) x 108 (D) mm
Weight (Net) 0.39kg
Weight (Gross) 1.10kg
