CYP - PUV-1710L-AVLC-KIT

HDBaseT1 LITE Full 4K AVLC Series Transmitter & Receiver Kit with PoH

4K/UHD Support
AVLC
HDBaseT
HDCP 2.2
HDMI - High Definition Multimedia Interface

Product Description

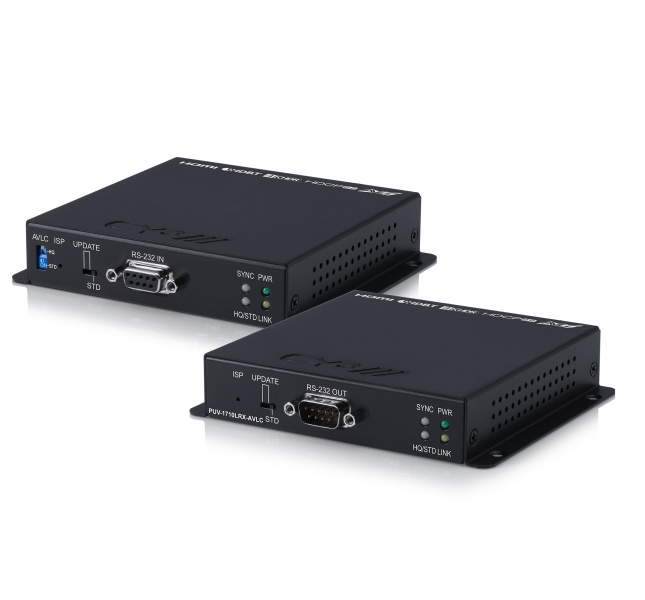

The CYP PUV-1710L-AVLC-KIT is a high-performance HDBaseT LITE Transmitter and Receiver kit engineered for reliable long-distance AV signal distribution. Designed to transmit HDMI, control, and power over a single Cat.5e/6/7 cable up to 70m (1080p) or 35m (4K), this compact kit ensures maximum compatibility and performance with HDCP 2.2/1.x, HDMI 2.0, and HDR video formats.

Powered by AVLC (Adaptive Visually Lossless Compression), the system enables full 18Gbps HDMI 2.0 bandwidth delivery over standard HDBaseT infrastructure. AVLC automatically activates when required, or can be manually switched between High Quality (HQ) and Standard (STD) compression modes for flexible performance. The Receiver is powered via PoH (Power over HDBaseT), reducing installation complexity and eliminating the need for a second power supply.

Additional features include bi-directional IR and RS-232 passthrough, deep colour support up to 12-bit, and HDMI resolutions up to 4K@60Hz (4:4:4). Perfect for commercial AV environments, the PUV-1710L-AVLC-KIT brings powerful, streamlined video distribution to a wide range of applications.

Highlighted Features:

1. Powerful AVLC Technology
With Adaptive Visually Lossless Compression, the PUV-1710L-AVLC-KIT overcomes HDBaseT's 10.2Gbps bandwidth limitation to deliver pristine HDMI 2.0 18Gbps content (4K@60Hz 4:4:4). Selectable HQ and STD modes ensure maximum performance or greater distance reach depending on the project needs.

2. Long-Distance Transmission over Single Cable

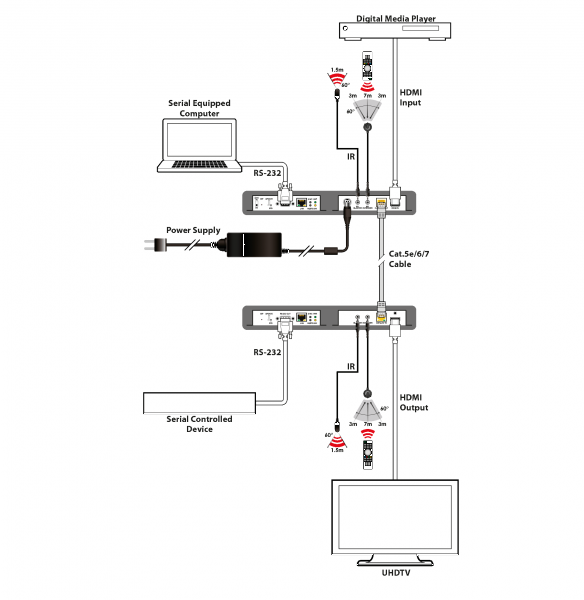

Achieve up to 70m extension at 1080p and 35m at 4K via a single Cat.5e/6/7 cable, supporting video, audio, IR, RS-232 and PoH – all from a single run. Ideal for clean, efficient installs with reduced cabling requirements.

3. Fully Integrated Control and Power Features
Bi-directional IR and RS-232 allow seamless control of source and display devices, while PoH ensures the receiver is powered from the transmitter side – streamlining installation with fewer power supplies required.

Applications:

  • Meeting room AV distribution

  • Lecture hall and classroom projection systems

  • Residential AV control and distribution

  • Retail and showroom display networks

  • Hospitality and entertainment venue AV systems

Manual

  • Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and Control (Bi-directional IR/RS-232 pass-through)
  • Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
  • AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
  • Supports 10-bit and 12-bit HDR (High Dynamic Range)
  • Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Description PUV-1710L-AVLC-KIT

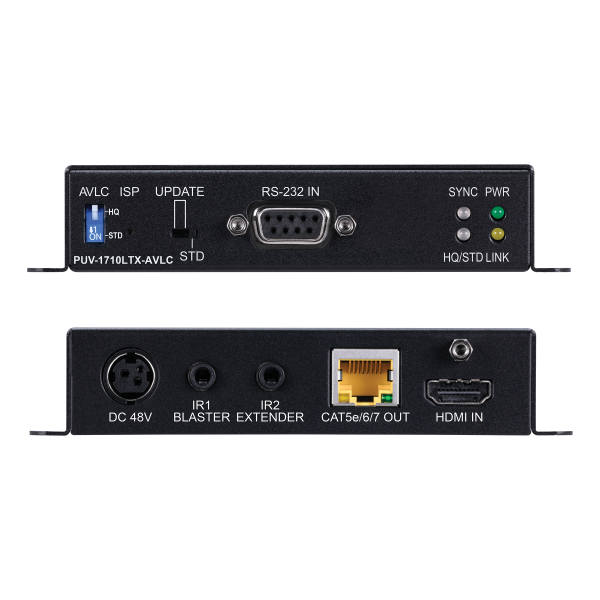

TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

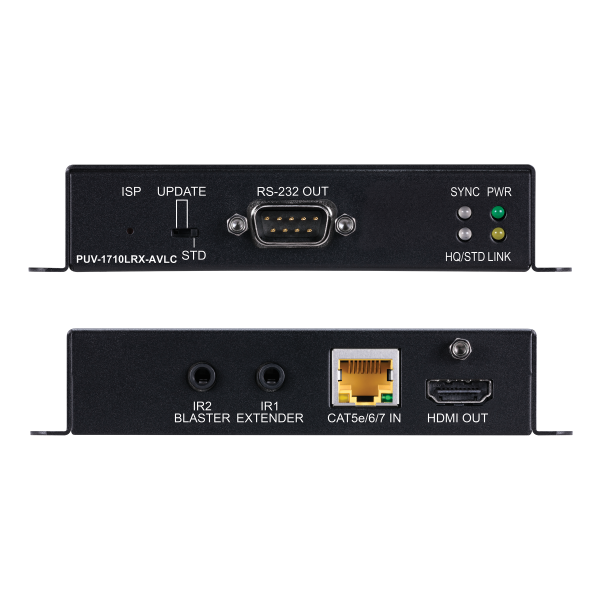

RX Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
TX Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
RX Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
- 1x 9pin Dsub [1x RS-232 Data]
- 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
TX PSU 48V/0.83A
RX PSU PoH
TX Dimensions 128 (W) x 25 (H) x 108 (D) mm
RX Dimensions 128 (W) x 25 (H) x 108 (D) mm
Weight (Net) 0.40kg
Weight (Gross) 1.10kg
