CYP - SDV-C2-TX

UHD+ 2×1 HDMI/DP to HDMI AV over IP Transmitter

4K/UHD Support
Displayport
HDMI - High Definition Multimedia Interface
Ingress Protection Rated
PoE
UHD Ultra High Definition

Product Description

The CYP SDV-C2-TX is a professional-grade UHD+ AV-over-IP transmitter offering low-latency 4K signal distribution via 10GbE over Cat.6A/7 cabling. It features HDMI and DisplayPort inputs, local HDMI output, and built-in USB hub functionality for advanced KVM use.

Ideal for integration in commercial installations, control rooms, and digital signage, it provides full compatibility with CYP’s IP Master Controller for matrix switching, video wall, and multiview configurations.

Key features include:

  • 4K60 4:4:4 video transmission with HDR and 10/12-bit colour support

  • Dual video inputs: HDMI and DisplayPort with selectable output

  • USB 2.0 host/device switching for flexible KVM routing

  • Independent analogue audio I/O for insertion and extraction

  • IR and RS-232 pass-through for full control signal extension

  • PoE-ready or powered via 12V DC adapter

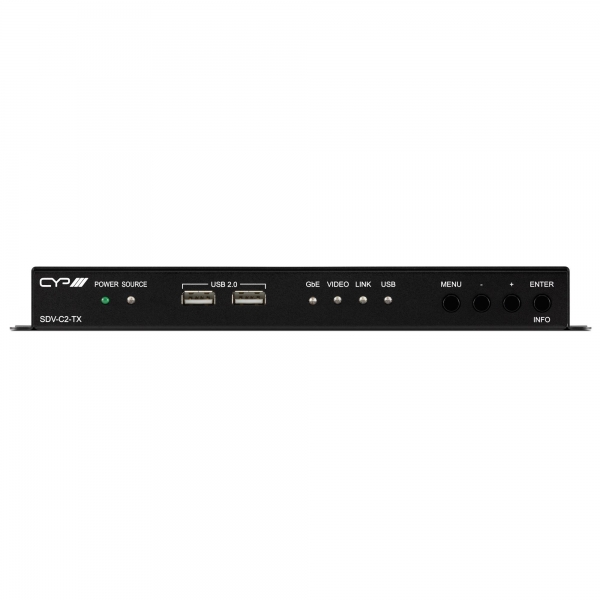

  • Built-in OSD and front panel controls for standalone setup

  • Expandable with IP Master Controller for advanced AVoIP configurations

  • Visually lossless compression and minimal latency streaming

  • Durable steel chassis with ESD protection and sleek black finish

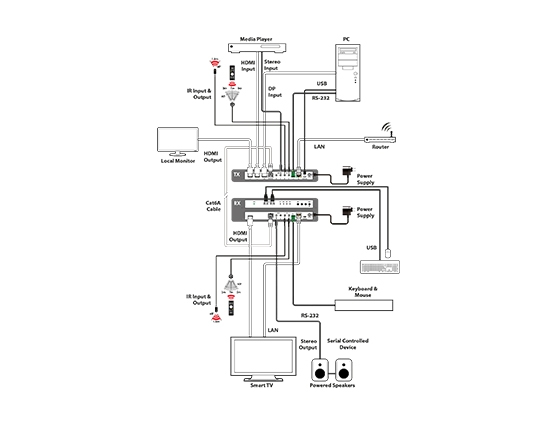

Whether deployed in a basic point-to-point setup or part of a large-scale AV network, the SDV-C2-TX delivers enterprise-level performance with rock-solid reliability.

For integration into the OR-PIP42SDMO

Take a look at the full CYP range here


Manual

  • HDMI and DisplayPort inputs with switchable outputs
  • Supports 4K60 4:4:4, HDR, and multichannel audio
  • USB 2.0 (Host/Device), RS-232, IR, and analogue audio
  • Ultra-low latency with visually lossless compression
  • Powered via PoE (802.3at) or 12V DC
  • Matrix switching, video wall, and multiview support with controller
  • Local HDMI output and OSD control
  • Built-in USB hub for KVM routing
  • EDID & HDCP configuration via menu or controller
  • 10GbE output for high-bandwidth transmission
  • Up to 100m extension over Cat.6A
  • Rugged metal chassis with ESD protection
Description SDV-C2-TX

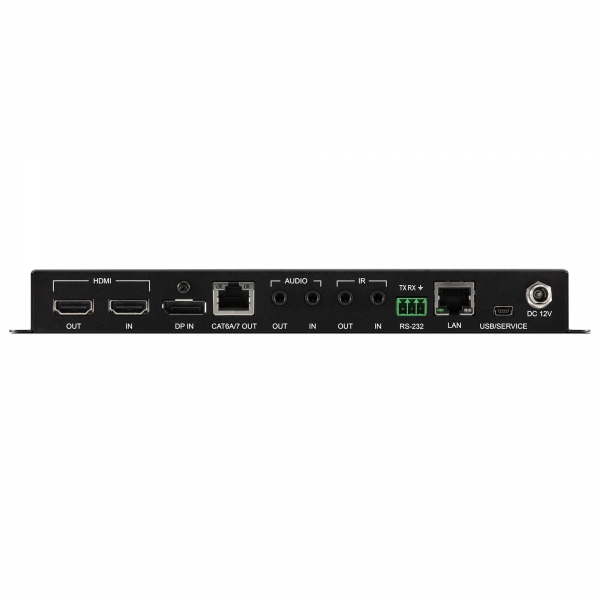

Input Ports 1× HDMI, 1× DisplayPort, 1× 3.5mm Stereo Audio
Output Ports 1× HDMI, 1× 10GbE LAN (RJ-45), 1× 3.5mm Stereo Audio
Pass-through RS-232, IR, USB 2.0 (Type-A/Mini-B), LAN
Max Video Resolution 4096×2160p@60Hz
HDMI Bandwidth 18Gbps
DP Bandwidth 21.6Gbps
Extension Distance Up to 100m over Cat.6A
USB 2× Type-A, 1× Mini-B (Host/Device switchable)
Audio Support LPCM (up to 8ch), HD Bitstream, analogue I/O
Control Front-panel buttons, OSD, optional WebGUI via controller
Power Supply PoE (802.3at) or 12V/3A DC
Power Consumption 18.7W
Operating Temp 0C - 40C
Chassis Metal (Steel), Black
ESD Protection ±8kV (Air), ±4kV (Contact)
Dimensions 215!W) × 25(H) × 116.7 (D) mm
Weight (Net) 0.90kg
Weight (Gross) 1.00kg
