March Networks - 43385-101

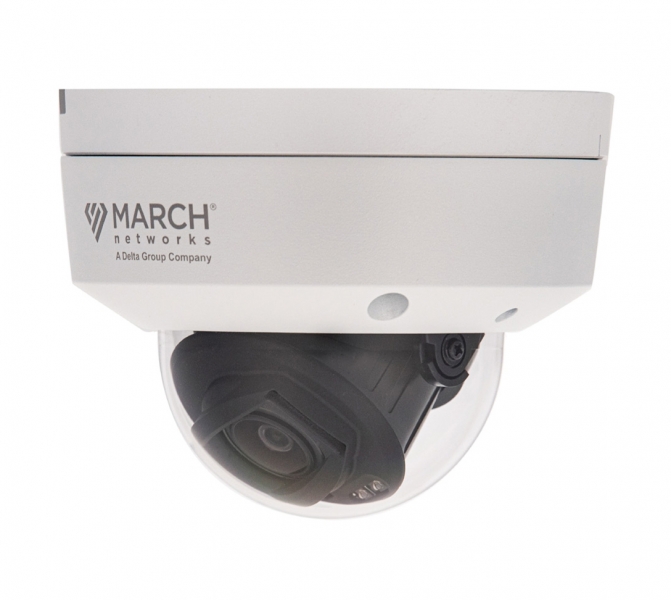

EL2 Motorised Dome
Product Description
The March Networks EL2 Motorised Dome is a rugged 2MP IP surveillance camera designed to deliver high-quality video across demanding indoor and outdoor environments. Its IP66 weather-resistant and IK10 vandal-resistant metal housing provides reliable protection against water, dust and physical impact.
The camera features a versatile 2.7–13.5 mm motorised P-Iris lens, allowing its field of view to be adjusted to suit different surveillance requirements. With 120 dB High Dynamic Range and smart IR illumination up to 30 metres, the camera provides clear, balanced images across challenging lighting conditions.
Integrated video analytics include tripwire, intrusion detection, loitering detection, abandoned object and object removal. These intelligent features help operators identify potential incidents and improve situational awareness.
The camera supports local microSD storage of up to 1TB and recording to NAS devices, providing additional recording resilience if the network connection is interrupted.
Applications include commercial premises, retail environments, education facilities, warehouses, industrial sites, transport locations, car parks and perimeter monitoring.
Also available in black housing.
Specification Sheet
- Click to download: Datasheet - EL2 Motorized Dome - 3569 - May 13 2026 - EN.pdf
- 2MP Full HD resolution
- Adjustable horizontal field of view from 106° to 32.8°
- 120 dB High Dynamic Range
- Smart IR illumination with a range of up to 30 metres
- Built-in intelligent video analytics
- Tripwire and intrusion detection
- Loitering, abandoned object and object removal detection
- Video motion and active tampering detection
- Up to three individually configurable video streams
- IP66 weather-resistant housing
- IK10 vandal-resistant construction
| Description | 43385-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Resolution | 2MP, 1920 × 1080 |
| Lens | |
| Field of View | Horizontal: 106° to 32.8° |
| HDR | 120 dB |
| Minimum Illumination | Colour: 0.03 lux; IR on: 0 lux |
| IR Illumination Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| Shutter Speed | 1/5s to 1/32000s |
| Camera Adjustment | Pan: 353°; tilt: 75°; rotation: 350° |
| Video Compression | H.265, H.264 and MJPEG |
| Frame Rate | Up to 30 fps at 2MP |
| Audio | Full-duplex audio with embedded microphone, stereo input and output |
| Video Analytics | Motion, camera tampering, abandoned object, loitering, tripwire, intrusion and object removal detection |
| Power Input | 12V DC or PoE IEEE 802.3af Class 0 |
| Power Consumption | Maximum 7.8 W via PoE |
| Operating Temperature | -30°C to +60°C |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Dimensions | 133 mm diameter × 103 mm |
