March Networks - 40559-101
EL2 IR Bullet Camera
Login for Pricing
Product Description

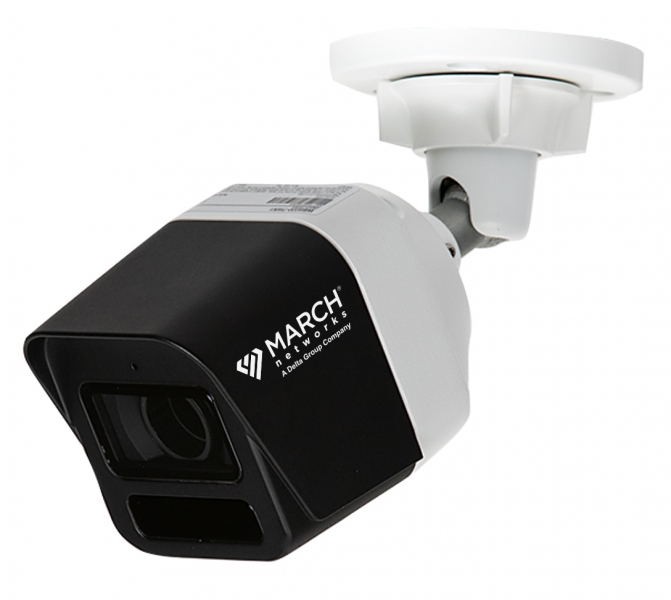

The March Networks EL2 Bullet Camera is a cost-effective 2MP IP surveillance camera designed to deliver high-quality video across a variety of indoor and outdoor environments. Its rugged metal housing is IK10 vandal-resistant and IP66/IP67-rated, providing reliable protection against impact, dust and water ingress.
Integrated smart IR illumination provides clear images at distances of up to 30 metres. The camera automatically adjusts the IR intensity based on the distance of objects, helping to prevent overexposure when people or objects move closer to the camera.
The EL2 Bullet Camera also features built-in video analytics, including tripwire, intrusion detection, loitering detection, abandoned object and object removal. It supports H.265, H.264 and MJPEG video compression, with local recording available through a microSD card slot.

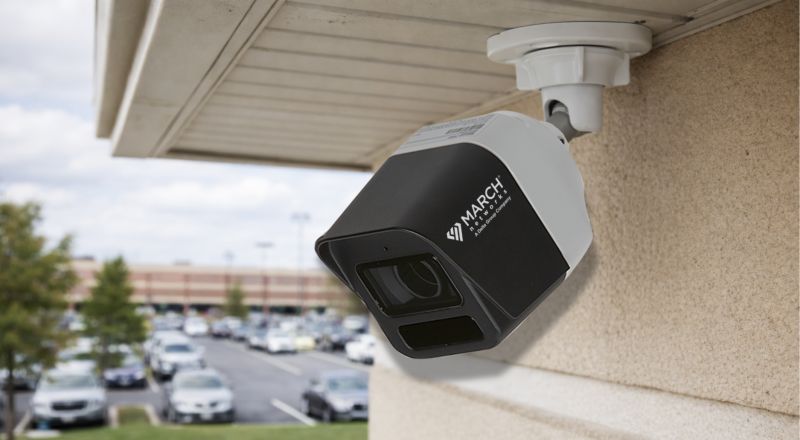

Applications include retail security, commercial premises, education facilities, warehouses, industrial sites, car parks and perimeter monitoring.
Specification Sheet
- Click to download: Datasheet - EL2 Bullet - 3568 - Jun 2026 - EN.pdf
- 2MP Full HD resolution with 120 dB HDR
- Built-in analytics including tripwire, intrusion, loitering, abandoned object and object removal
- Smart IR illumination with a range of up to 30 metres
- Rugged IP66/IP67 and IK10-rated metal housing
- Up to three individually configurable video streams
- H.265, H.264 and MJPEG video compression
- Full-duplex, two-way audio with built-in microphone
- Local microSD/SDHC/SDXC card storage
- 12V DC or PoE power options
- ONVIF Profiles S, G and T support
| Description | 40559-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Resolution | 2MP, 1920 × 1080 |
| Lens | |
| Optical Zoom | 5x |
| Digital Zoom | 8x |
| HDR | 120 dB |
| IR Illumination Distance | Up to 30 m |
| Minimum Illumination | Colour: 0.03 lux; IR on: 0 lux |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Up to 30 fps at 2MP |
| Audio | Full-duplex two-way audio, built-in microphone and line input/output |
| Local Storage | microSD/SDHC/SDXC card slot |
| Video Analytics | Tripwire, intrusion, loitering, abandoned object and object removal |
| Power Input | 12V DC or PoE IEEE 802.3af |
| Power Consumption | Maximum 7.77 W via PoE with IR on |
| Ingress Protection | IP66/IP67 |
| Impact Resistance | IK10 |
| Operating Temperaturing | -30°C to +50°C with IR on |
| Dimensions | 195 × 85 × 85 mm |
| Netowrk Connection | RJ45 10/100 Base-T |
| Weight (Net) | 0.75kg |
| Weight (Gross) | 0.00kg |
