You are here: Video Surveillance > Network Cameras > EL2 IR Dome - 2MP, 2.8mm F2.0 Fixed Lens, IR, POE, 12VDC, IK10, IP66, Built-in Microphone
March Networks - 40560-101
EL2 IR Dome - 2MP, 2.8mm F2.0 Fixed Lens, IR, POE, 12VDC, IK10, IP66, Built-in Microphone
Login for Pricing
Product Description

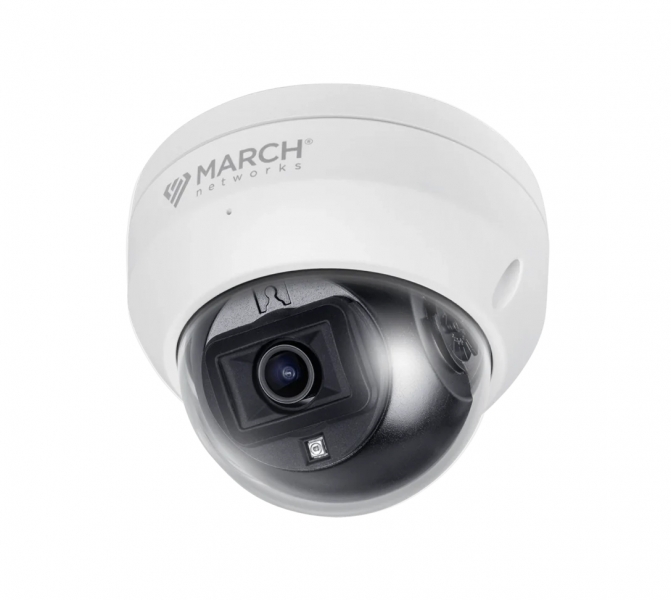

The March Networks EL2 Fixed Dome is a compact and cost-effective 2MP IP surveillance camera designed for indoor and outdoor installations. Its IP66 weather-resistant and IK10 vandal-resistant housing makes it suitable for demanding environments where reliable video monitoring is required.
The camera features a wide-angle 2.8 mm fixed lens with a 116° horizontal field of view. Integrated smart IR illumination provides clear, low-noise images at distances of up to 30 metres, automatically adjusting the IR intensity to prevent nearby objects from appearing overexposed.
Smart Motion Detection distinguishes between people and vehicles, helping to reduce false alarms and unnecessary recordings. The camera also supports local microSD storage of up to 1TB, providing additional recording resilience if the network connection is interrupted.
Applications include retail security, commercial premises, education facilities, warehouses, entrances, car parks and perimeter monitoring.
Specification Sheet
- Click to download: Datasheet - EL2 Fixed Dome - 3480 - May 2026 - EN.pdf
- 2MP Full HD resolution
- Wide-angle 2.8 mm fixed lens
- 116° horizontal field of view
- Smart IR illumination with a range of up to 30 metres
- Smart Motion Detection with human and vehicle classification
- Tunable time filter to help reduce false alarms
- Up to two individually configurable video streams
- H.265, H.264 and MJPEG video compression
- Built-in microphone with one-way audio
- Local microSD storage of up to 1TB
- IP66 weather-resistant housing
- IK10 vandal-resistant construction
| Description | 40560-101 |
|---|---|
| Image Sensor | 1/3 |
| Resolution | 2MP, 1920 × 1080 |
| Lens | 2.8 mm, F2.0 fixed lens |
| Field of View | 116° horizontal |
| HDR | 69 dB |
| Minimum Illumination | Colour: 0.08 lux; B/W: 0.05 lux; IR on: 0 lux |
| IR Illumination Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| Shutter Speed | 1/5s to 1/32000s |
| Camera Adjustment | Pan: 340°; tilt: 80°; rotation: -100° to 100° |
| Video Compression | H.265, H.264 and MJPEG |
| Frame Rate | Up to 30 fps at 2MP |
| Audio | One-way audio with embedded microphone |
| Local Storage | microSD/microSDHC/microSDXC card up to 1TB |
| Ingress Protection | IP66 |
| Impact Resistance | IK10 |
| Video Analytics | Smart Motion Detection with human and vehicle detection |
| Power Input | 12V DC or PoE IEEE 802.3af Class 0 |
| Network Connection | RJ45 10/100 Base-T |
| Dimensions | 110 mm diameter × 85 mm |
| Weight (Gross) | 0.00kg |
