CYP - PUV-3050RX-UA

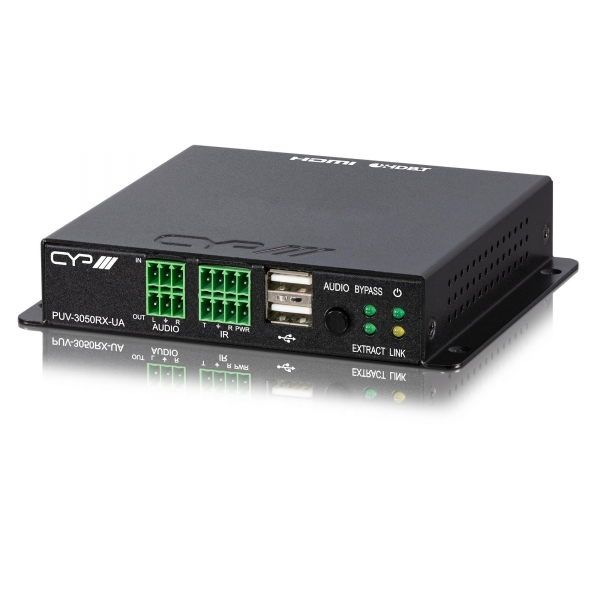

HDBaseT3 Full 4K HDMI Receiver with USB, PoH, Audio Pathway & Local HDMI
Product Description
The PUV-3050RX-UA is a cutting-edge 4K HDMI HDBaseT receiver, designed for advanced HDBaseT 3.0 systems requiring full-bandwidth UHD video, audio, USB, and control signal extension. Supporting up to 18Gbps HDMI 2.0 and 4K@60Hz (4:4:4, 8-bit), this receiver ensures flawless video and audio transmission across distances up to 40m using a single Cat.6A/7 cable.
Seamlessly integrating into any professional AV system, the receiver supports USB 2.0 extension via Type-A ports and a Micro-USB host connection—ideal for KVM functionality. Selectable audio routing options include HDMI audio extraction or analogue audio bypass, providing flexible audio integration for both simple and complex installs. The device is powered via PoH from a compatible transmitter, streamlining cabling in space-conscious environments.
With IR, RS-232 pass-through, HDR compatibility, and EDID handling, the PUV-3050RX-UA is built for demanding environments such as medical facilities, lecture halls, and high-end conference suites.

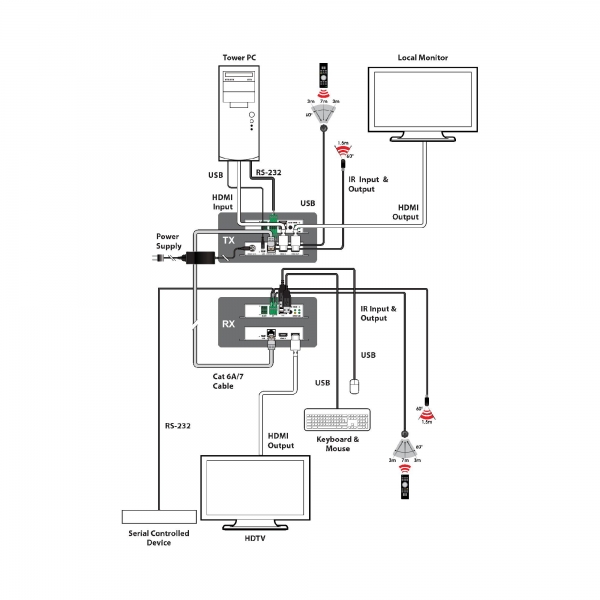

Pair with the CYP PUV-3050TX-UA Transmitter.
Application:
-
Education and lecture hall AV distribution
-
Medical imaging and diagnostics setups
-
Corporate boardrooms and meeting spaces
-
Live event and conference venues
-
Government and control rooms
Manual
- Click to download: PUV-3050RX-UA_PDF-Manual_RDV1.1.pdf
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video over HDBaseT
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through)
- USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.
- Analogue audio I/O pathway across the HDBaseT link
- Audio output is selectable between the bypass & extraction

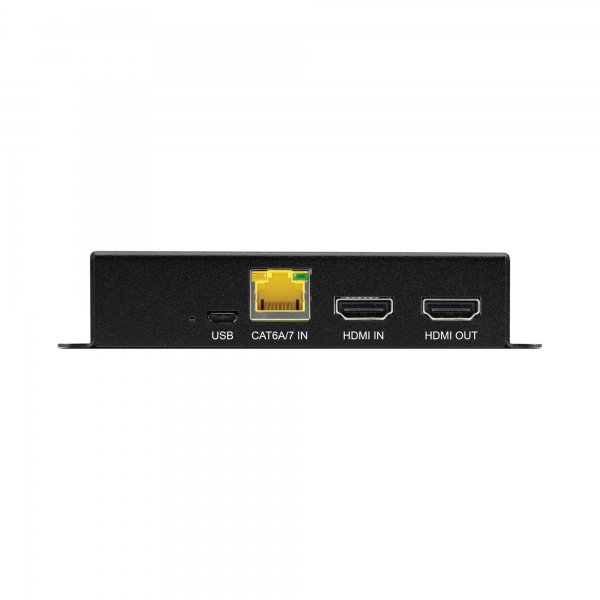

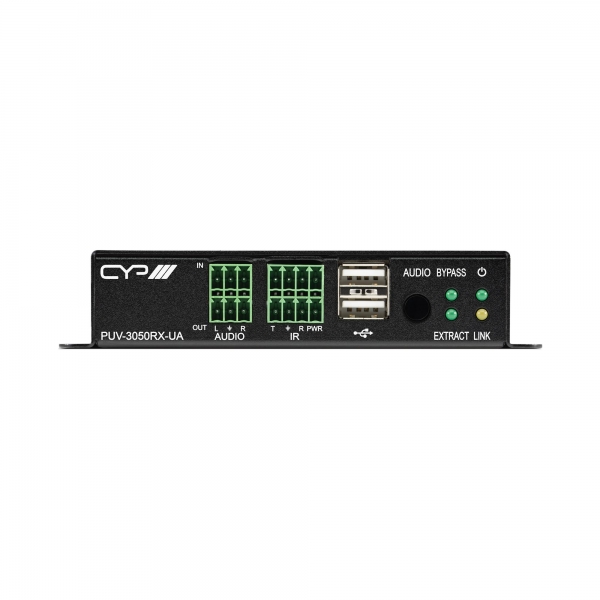

| Description | PUV-3050RX-UA |
|---|---|
| Inputs | 1x HDMI [1x HDMI local input Uncompressed AV and Data] |
| - | 1x RJ45 [1x HDBaseT 3 HDMI & Propriety Data] |
| - | 1x USB Micro [1x Service Port Propriety Data] |
| - | 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] |
| Outputs | 1x HDMI [1x HDMI Uncompressed AV and Data] |
| - | 1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input] |
| - | 2x USB Type A [2x USB pathway Propriety Data] |
| PSU | PoH |
| Dimensions | 128 (W) x 25 (H) x 108 (D) mm |
| Weight (Net) | 0.39kg |
| Weight (Gross) | 0.45kg |
