2N - 9151301RP

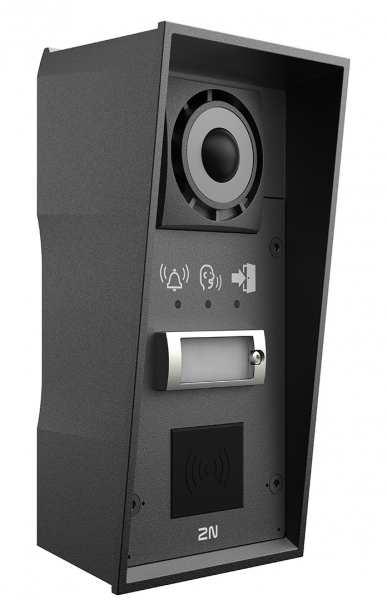

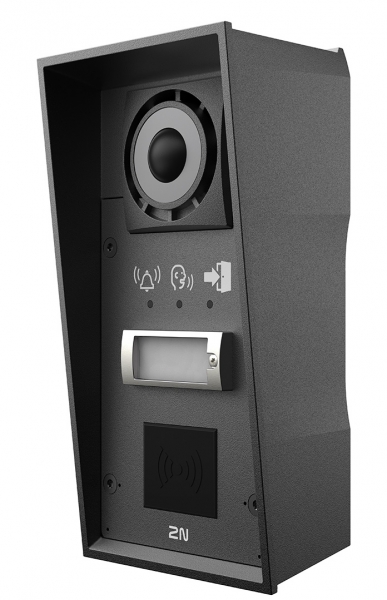

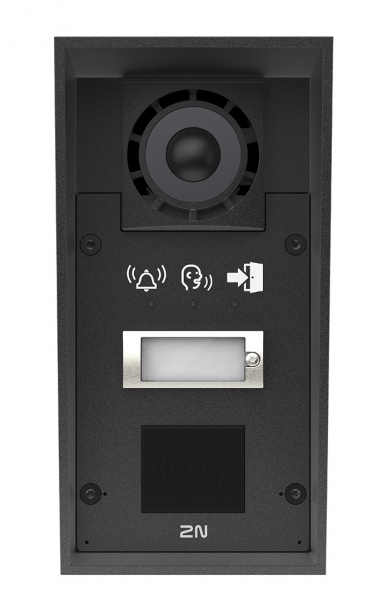

2N IP Force 2.0, 1 Button, Pictograms, Card Reader Ready, Audio Only
Login for Pricing
Product Description
The 2N IP Force 2.0 - 1 Button, Pictograms, Card Reader Ready, Audio-Only is designed for environments where robust physical security, clear user guidance and dependable communication are essential. This model combines a single call button with bright, intuitive pictograms to communicate access status, making it ideal for sites requiring visual cues to support users and visitors.
Its card-reader-ready design allows the quick addition of 13.56 MHz or 125 kHz RFID modules, providing future-proof scalability for secure credential-based access control - supported by OSDP and Wiegand interfaces.
It integrates seamlessly with IP access control systems, VMS platforms and third-party infrastructure, enabling easy deployment, remote administration and consistent performance across enterprise-level installations. Combined with its rugged design and clear user-feedback pictograms, the 9151301RP provides a highly reliable audio-only solution for secure access points in both commercial and industrial settings.
Specification Sheet
- Click to download: 2n_datasheet_ip_force_2_0_en_lq.pdf
- Illuminated status pictograms providing clear visual cues for call
- Extreme durability (IP69 / IK10) ensuring resistance to water, dust, impact and tampering
- Card-reader-ready architecture supporting 125 kHz & 13.56 MHz RFID modules
- Full protocol compatibility, including SIP, SRTP, HTTPS, ONVIF, RTSP and 802.1x for secure, easily managed integration
| Description | 9151301RP |
|---|---|
| Power supply type | 12 V / 4 A DC or PoE+ |
| PoE+ | IEEE 802.3at |
| Max power consumption | 30W |
| LAN | 10/100/1000BASE-TX with Auto-MDIX, RJ-45 |
| Recommended cabling | CAT6 with MPTL |
| Active switch output | 12 V / 0.6 A DC |
| Supported frequencies | 125 kHz & 13.56 MHz (multifrequency) |
| Microphone | 2 integrated |
| Amplifier | 10 W / 4 Ω |
| Speaker | 10 W / 4 Ω |
| Surface mounted | 109 (W) x 217 (H) x 83 (D) mm |
| Flush mounted | 135 (W) x 244 (H) x 12 (D) mm |
| Weight (Net) | 2.00kg |
| Weight (Gross) | 0.00kg |
