2N - 9151304

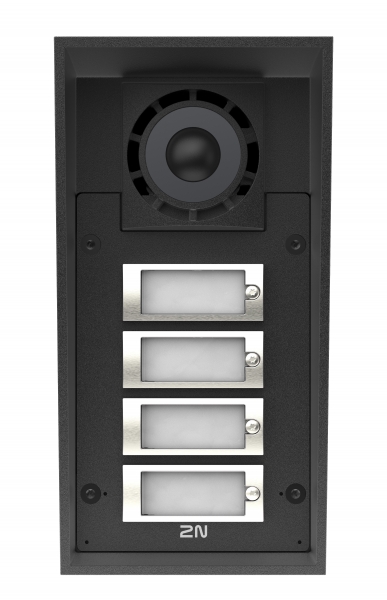

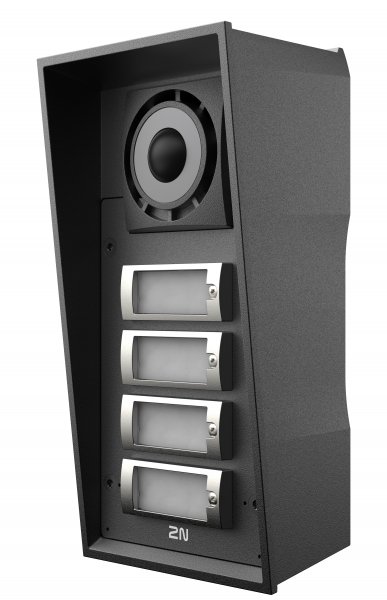

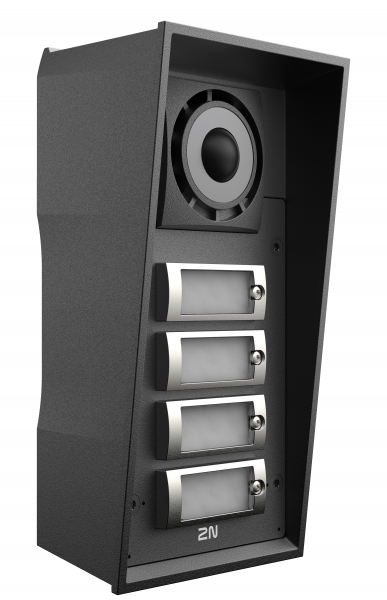

Force 2.0 Vandal Resistant Intercom - 4 Buttons, Audio Only
List Price
£1,777.50
$0.00
€0.00
incl. VAT
Product Description
The 2N IP Force 2.0 - 4 Button, Audio-Only is the most versatile audio-based unit in the Force 2.0 family, offering four independently configurable call buttons for installations that require multiple contact points or departmental routing from a single intercom station. This makes it ideally suited for large commercial facilities, logistics sites or multi-occupancy buildings where users must select between several destinations or service teams.
Engineered for ultimate resilience, the device features an IP69 and IK10-certified housing, allowing the intercom to withstand dust, water jets, heavy impact and vandalism in outdoor or industrial environments.
In addition to its rugged design, the 9151304 delivers high-performance audio, featuring dual integrated microphones, a powerful 10 W loudspeaker, noise-cancellation, full-duplex communication, and automatic adaptive volume control. These capabilities ensure that speech remains clear in noisy loading bays, busy vehicle areas or industrial floors. Supported by industry-standard protocols including SIP, SRTP, HTTPS and ONVIF, this unit integrates seamlessly into IP-based access control, communication and security systems, with full remote configuration and monitoring tools available for streamlined deployment across multi-site estates.
Specification Sheet
- Click to download: 2n_datasheet_ip_force_2_0_en_lq.pdf
- Dual-microphone audio system with a 10 W, 4 Ω loudspeaker for powerful, clear communication in loud environments.
- Extreme durability: IK10 impact resistance & IP69 environmental protection for exposed or high-risk installations.
- Secure cybersecurity architecture with support for HTTPS, SRTP, 802.1x and signed firmware protections.
- Four programmable, backlit call buttons for multi-destination communication from a single access point.
- Comprehensive IP integration including SIP2.0, ONVIF, RTP/RTSP, and full remote configuration and monitoring support.
| Description | 9151304 |
|---|---|
| Number of Call buttons | 4 |
| Power | 12v 4A DC or PoE+ |
| VBus connector | Yes - for additional modules |
| Microphones | 2x integrated |
| Loudspeaker | 10W 4 ohm |
| Signalling Protocol | SIP (UDP, TCP, TLS) |
| LAN | 10/100/1000BASE-TX with Auto-MDIX, RJ-45 |
| Max power consumption | 30W |
| Recommended cabling | CAT6 with MPTL |
| Supported frequencies | 125 kHz & 13.56 MHz (multifrequency) |
| Speaker | 10 W / 4 Ω |
| Amplifier | 10 W / 4 Ω |
| Flush mounted | 135 (W) x 244 (H) x 12 (D) mm |
| Surface mounted | 109 (W) x 217 (H) x 83 (D) mm |
| Weight (Net) | 2.00kg |
| Weight (Gross) | 0.00kg |
