2N - 9151302R

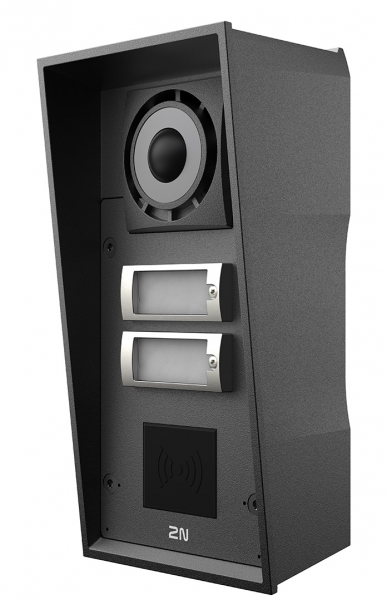

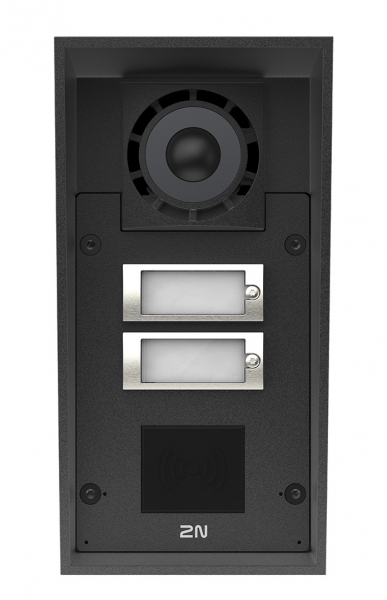

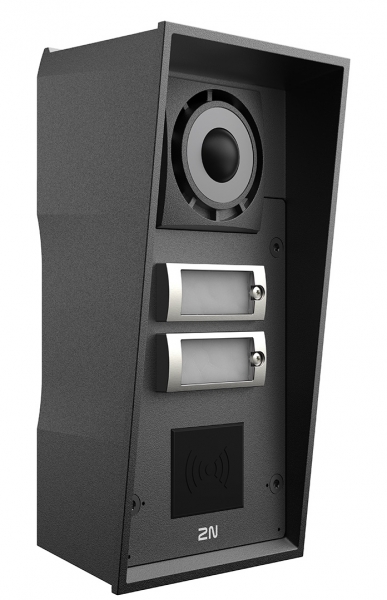

Force 2.0 Vandal Resistant Intercom - 2 Buttons, Card Reader Ready, Audio Only
Login for Pricing
Product Description
The 2N IP Force 2.0 - 2 Buttons, Card Reader Ready, Audio-Only brings enhanced user flexibility to industrial-grade access control.
Featuring two independent call buttons and a future-proof reader bay for integrating 125 kHz or 13.56 MHz RFID modules, this model is ideal for sites requiring separate call routing, multi-department access, or dual-entry management.
Built for extreme reliability, the 9151302R features a rugged aluminium housing with IP69 and IK10 certification, enabling it to withstand water immersion, dust ingress and significant mechanical impact. These ratings make it suitable for outdoor, industrial or high-risk installations.
Remote configuration and monitoring are supported via user-friendly web tools or enterprise management systems, simplifying deployment across multi-site estates. Its dual-button layout, high-impact design and credential-ready hardware make it an outstanding choice for organisations demanding tough, flexible and secure audio-only entry control.
Specification Sheet
- Click to download: 2n_datasheet_ip_force_2_0_en_lq.pdf
- Two programmable call buttons enabling multi-route communication from a single intercom station
- RFID-ready expansion bay supporting 125 kHz & 13.56 MHz technologies
- High-power 10 W speaker with dual microphones delivering clear audio in loud industrial or transport environments
- Extreme durability with IK10 impact resistance and IP69 ingress protection for harsh or vandal-prone locations
- Comprehensive protocol support including SIP2.0, SIPS, SRTP, HTTPS, 802.1x and ONVIF for seamless integration with enterprise-level access control and communication systems
| Description | 9151302R |
|---|---|
| Power supply type | 12 V / 4 A DC or PoE+ |
| PoE+ | IEEE 802.3at |
| Max power consumption | 30W |
| LAN | 10/100/1000BASE-TX with Auto-MDIX, RJ-45 |
| Recommended cabling | CAT6 with MPTL |
| Active switch output | 12 V / 0.6 A DC |
| Supported frequencies | 125 kHz & 13.56 MHz (multifrequency) |
| Microphone | 2 integrated |
| Amplifier | 10 W / 4 Ω |
| Speaker | 10 W / 4 Ω |
| Surface mounted | 109 (W) x 217 (H) x 83 (D) mm |
| Flush mounted | 135 (W) x 244 (H) x 12 (D) mm |
| Weight (Gross) | 0.00kg |
