EL2 NanoDome - 2MP, 2.8mm Fixed lens, POE, 12VDC, Built-in Microphone
Login for Pricing
Product Description

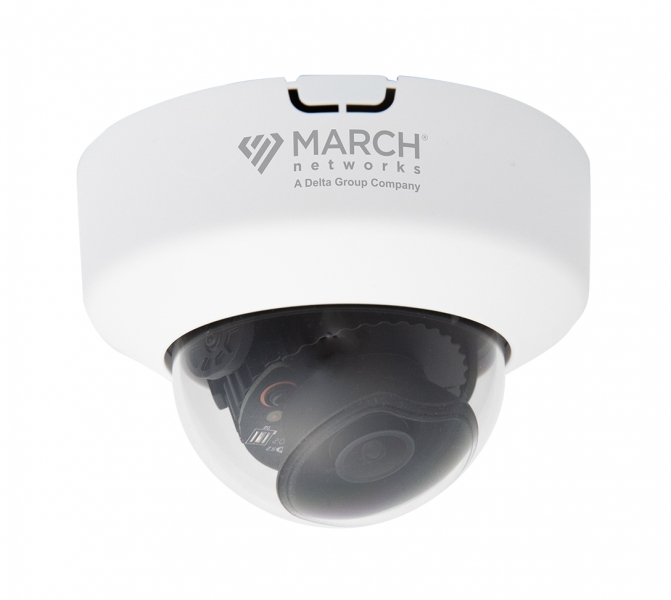

The March Networks EL2 Nano Dome is a discreet and ultra-compact 2MP IP surveillance camera designed for high-traffic and space-limited indoor environments. Approximately the size of a tennis ball, the camera provides wide-angle video coverage without drawing unnecessary attention.
Its 2.8 mm fixed lens provides a 111° horizontal field of view, while Wide Dynamic Range helps deliver clear, balanced images in challenging lighting conditions. Integrated smart IR illumination offers visibility at distances of up to 30 metres for reliable day-and-night monitoring.
Powered by an embedded deep-learning system, the EL2 Nano Dome provides intelligent video analytics including intrusion, loitering, line crossing, unattended object, missing object, face and crowd detection.
The camera supports local microSD storage of up to 1TB and is fully integrated with the March Networks Command video management platform and Searchlight Cloud. Enterprise-grade cybersecurity features include signed firmware, encrypted streaming, HTTPS and certificate-based authentication.
Applications include retail stores, point-of-sale areas, quick-service restaurants, financial institutions, transport hubs, entrances and vestibules.
Specification Sheet
- Click to download: Datasheet - EL2 NanoDome - 3570 - Apr 2026 - EN.pdf
- Compact, discreet design approximately the size of a tennis ball
- 2MP Full HD resolution
- Wide-angle 2.8 mm fixed lens
- 111° horizontal field of view
- Smart IR illumination with a range of up to 30 metres
- Built-in AI-driven video analytics
- Smart motion and people detection
- Up to three individually configurable video streams
- H.265, H.264 and MJPEG video compression
- Built-in microphone with one-way audio
- Local microSD storage of up to 1TB
- 12V DC or PoE power options
| Description | 43460-101 |
|---|---|
| Image Sensor | 1/2.7 |
| Resolution | 2MP, 1920 × 1080 |
| Lens | 2.8 mm fixed lens |
| Field of View | Horizontal: 111°; vertical: 59°; diagonal: 133° |
| IR Illumination Distance | Up to 30 m |
| IR Wavelength | 850 nm |
| Shutter Speed | 1/5s to 1/32000s |
| Camera Adjustment | Pan: 350°; tilt: 75°; rotation: 200° |
| Video Compression | H.265, H.264 and MJPEG |
| Frame Rate | Up to 30 fps at 2MP |
| Audio | One-way audio with built-in microphone |
| Local Storage | microSD/microSDHC/microSDXC card up to 1TB |
| Video Analytics | Intrusion, loitering, line crossing, unattended object, missing object, face and crowd detection |
| Motion Detection | Five-window smart motion detection, people detection and time filtering |
| Power Input | 12V DC or PoE IEEE 802.3af Class 3 |
| Power Consumption | Maximum 6.9 W via PoE with IR on |
| Construction | Plastic housing with polycarbonate bubble |
| Network Connection | RJ45 10/100 Base-T |
| Dimensions | 91 mm diameter × 63 mm height |
| Operating Temperature | -10°C to +50°C with IR on |
| Weight (Net) | 0.56kg |
| Weight (Gross) | 0.00kg |
